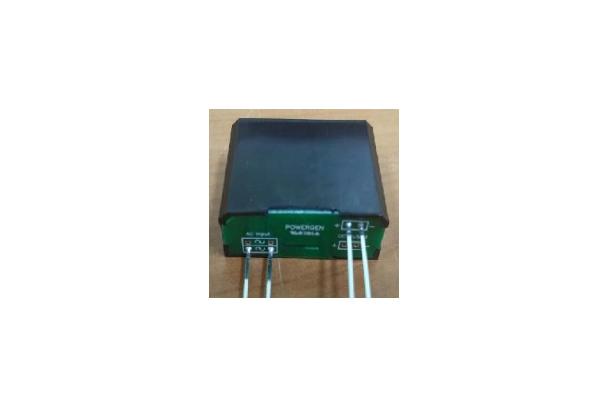

product Image
Switching Mode Power Supply PA-S Series
Model Name
PA0424S
Series
Power Module
Data
Catalog-Powergen-Switching Mode Power Supply PA-S Series-PA0424S
Manufacturer information
provider logo
POWERGEN

Switching Power Supply (SMPS), DC-DC CONVERTER, Ceramic Specialist

Problem with product info?
Update request
Manufacturer
POWERGEN
Brand
-
SKU
138866
Product Name
Switching Mode Power Supply PA-S Series
Model Name
PA0424S
Size
-
Weight
-
Product Details

PA-S Series Explanation

• AC - DC CONVERTER

• ON - BOARD TYPE SMPS

• WIDE INPUT RANGE

• PROTECTION ( O.V.P / O.C.P / S.C.P)

• THERMAL SHUTDOWN

• NO LOAD POWER CONSUMPTION

• ISOLATED OUTPUT

• SMALL MULTI-PURPOSE POWER SUPPLY



MODEL NUMBER INPUT(V) OUTPUT(V) MODEL TYPE MODEL SIZE
PA0424S 85~265VAC 24V/0.15A Single 34.5X14.2XH24(mm)



Special Features

• Small multi-purpose power supply

• Wide Input Range (AC85V~265V)

• Isolated output

• Short circuit protection

• Over voltage protection

• Thermal shutdown

• Low standby-power



Electrical Characteristics

Notes

(1) For cases where the conformance to various safety spec is required, input voltage and frequency range will be 85VAC ~265VAC, 60Hz/50Hz.
