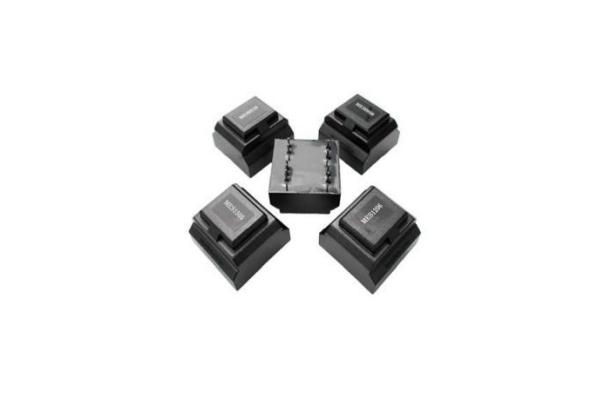

MES-M Series(7W, Dual) Explanation
• DC - DC CONVERTER
• ON - BOARD TYPE SMPS
• WIDE INPUT RANGE
• PROTECTION ( O.V.P / O.C.P / S.C.P)
• THERMAL SHUTDOWN
• ISOLATED OUTPUT
MODEL NUMBER | INPUT(V) | OUTPUT(V) | MODEL TYPE | MODEL SIZE |
MES0505M | 120~375VDC |
5V/0.9A, 5.2V/0.2A |
dual | 31X31XH22(mm) |
Special Features
• Small multi-purpose power supply
• Wide Input Range
• Isolated output
• Short circuit protection
• Over voltage protection
• Thermal shutdown
Electrical Characteristics
Notes
(1) For cases where the conformance to various safety spec is required, input voltage range will be 120V ~ 375V
