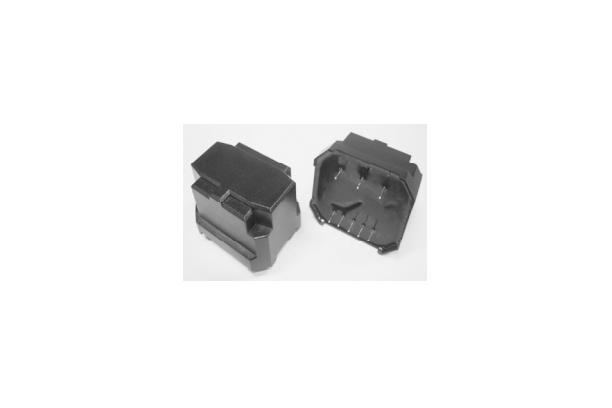

product Image
DC-to-DC Converter Modules MES P Series(25W)
Model Name
MES1813P
Series
Power module DC-DC
Data
Catalog-Powergen-DC-to-DC Converter Modules MES P Series(25W)-MES1813P
Manufacturer information
provider logo
POWERGEN

Switching Power Supply (SMPS), DC-DC CONVERTER, Ceramic Specialist

Problem with product info?
Update request
Manufacturer
POWERGEN
Brand
-
SKU
138945
Product Name
DC-to-DC Converter Modules MES P Series(25W)
Model Name
MES1813P
Size
-
Weight
-
Product Details

MES P Series(25W) Explanation

• DC - DC CONVERTER

• ON - BOARD TYPE SMPS

• WIDE INPUT RANGE

• PROTECTION ( O.V.P / O.C.P / S.C.P)

• THERMAL SHUTDOWN

• ISOLATED OUTPUT



MODEL NUMBER INPUT(V) OUTPUT(V) MODEL TYPE MODEL SIZE
MES1813P 120~375VDC

18V/1.3A

Single 46X36.5XH27(mm)



General Description

MES1813P is a DC-to-DC converter which can be used to supply DC output from a commercial power supply (85 to 265 VAC).  Using these module enable simple, easy drive of microcomputers, LEDs, and other electronic components without using a transformer.

It also allows set PCBs to be kept compact and lightweight, with extremely few attachments.  It can accommodate the 100VAC~265VAC power supplies used as household power supplies.



Application

▪ Small multi-purpose power supply.

▪ Stand-by power supply aimed at low power consumption when loaded light.

▪ Insulated-type DC-DC converted.



Features

▪ Wide Input Range : FREEVOLT (AC 85V ~ 265V)

▪ A switching power supply can be made easily by adding simply external circuit

▪ Permits reduction of power consumption at low loads(when in stand-by)

▪ Able to deal with inputs of worldwide areas

▪ Ultra-compact size attained by application of high-density mounting technique

▪ Application of the unique molding technique features

  Compliance with various safety regulations from the compact size

  Humming is prevented when intermittent oscillation

▪ Over Temperature Protection

▪ Output Short Circuit Protection

▪ Over Load Protection



Electrical Characteristics
