product Image

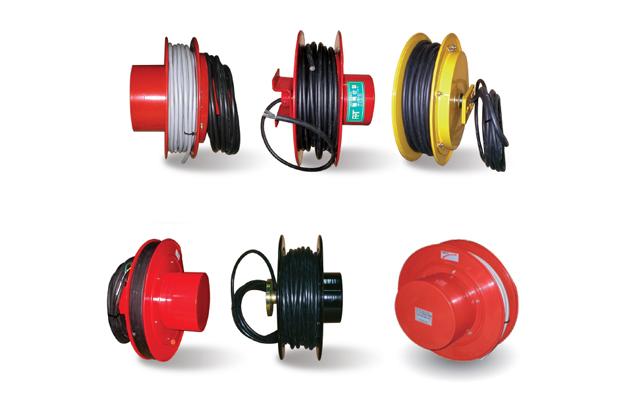

Self Retracting Cable Reels (CWR-Series)
Model Name
CWR2320P-X
Series
Reel For Crane
Data
-
Manufacturer information
provider logo
REELTEC

Reel manufacturer, Air reel, Gas reel, Hose reel, Hose for crane and more

Problem with product info?
Update request
Manufacturer
REELTEC
Brand
-
SKU
137821
Product Name
Self Retracting Cable Reels (CWR-Series)
Model Name
CWR2320P-X, CWR2330P-X, CWR2340P-X, CWR2350P-X, CWR2420P-X, CWR2430P-X, CWR2440P-X, CWR2450P-X, CWR2520P-X, CWR2530P-X, CWR2540P-X, CWR2550P-X, CWR4320P-X, CWR4330P-X, CWR4340P-X, CWR4350P-X, CWR4420P-X, CWR4430P-X, CWR4440P-X, CWR4450P-X, CWR4520P-X, CWR4530P-X, CWR4540P-X, CWR4550P-X
Size
-
Weight
-
Product Details

Design & Structure

  • Heavy duty steel construction and without frame.
  • Special heat-treatment spring & without ratchet(Constant tension)
  • 3~5 conductor 30~50 amp/600 volt rated slip ring.
  • Brushes are copper graphite with copper alloy rings.
  • All materials are carbon steel as standard(Stainless,Aluminum and other materials are available when you requested)
  • Crane cable reels are furnished standard with PNCT Cable
  • Other specifications are available



Painting : Powder Coat.



  CABLE TYPE A B C D E F CABLE TYPE CABLE
LENGTH
1 CWR2320P-X Φ390 200 90 115 60 265 PNCTx2.5sqx3c 20M
2 CWR2330P-X Φ450 PNCTx2.5sqx3c 30M
3 CWR2340P-X Φ500 PNCTx2.5sqx3c 40M
4 CWR2350P-X Φ550 PNCTx2.5sqx3c 50M
5 CWR2420P-X Φ390 200 90 115 60 265 PNCTx2.5sqx4c 20M
6 CWR2430P-X Φ450 PNCTx2.5sqx4c 30M
7 CWR2440P-X Φ550 PNCTx2.5sqx4c 40M
8 CWR2450P-X Φ550 PNCTx2.5sqx4c 50M
9 CWR2520P-X Φ390 200 110 130 60 300 PNCTx2.5sqx5c 20M
10 CWR2530P-X Φ450 PNCTx2.5sqx5c 30M
11 CWR2540P-X Φ500 PNCTx2.5sqx5c 40M
12 CWR2550P-X Φ550 PNCTx2.5sqx5c 50M
13 CWR4320P-X Φ390 200 90 115 60 265 PNCTx4.0sqx3c 20M
14 CWR4330P-X Φ450 PNCTx4.0sqx3c 30M
15 CWR4340P-X Φ550 PNCTx4.0sqx3c 40M
16 CWR4350P-X Φ550 PNCTx4.0sqx3c 50M
17 CWR4420P-X Φ450 200 90 115 60 265 PNCTx4.0sqx4c 20M
18 CWR4430P-X Φ500 PNCTx4.0sqx4c 30M
19 CWR4440P-X Φ550 PNCTx4.0sqx4c 40M
20 CWR4450P-X Φ550 PNCTx4.0sqx4c 50M
21 CWR4520P-X Φ450 200 110 130 60 300 PNCTx4.0sqx5c 20M
22 CWR4530P-X Φ500 PNCTx4.0sqx5c 30M
23 CWR4540P-X Φ550 PNCTx4.0sqx5c 40M
24 CWR4550P-X Φ550 PNCTx4.0sqx5c 50M
