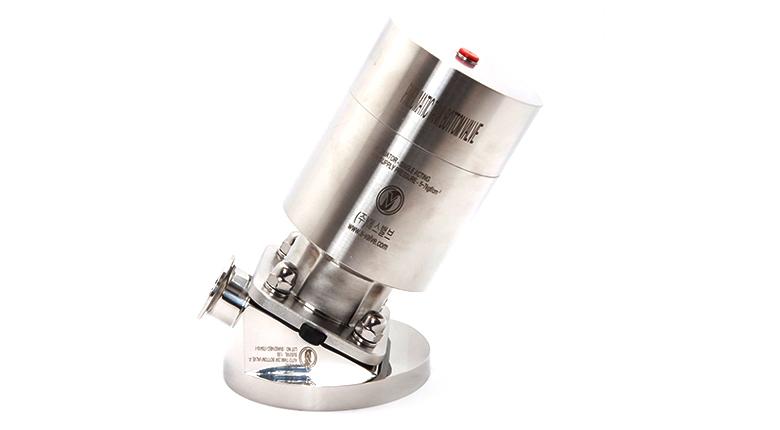

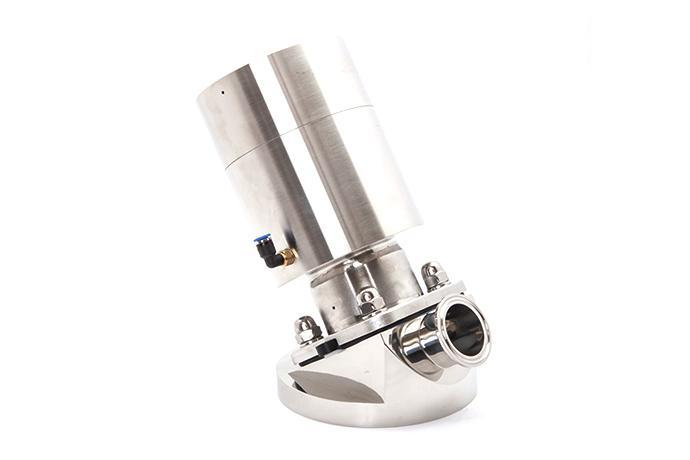

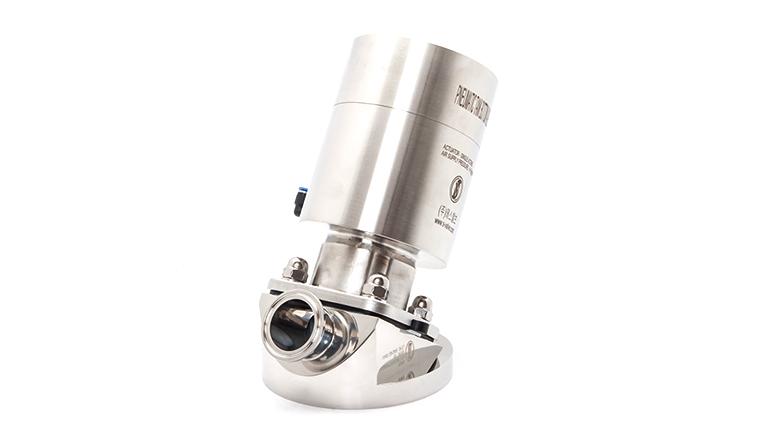

Pneumatic Tank Bottom Diaphragm Valve
Model Name
SVA183
Series
Pneumatic Diaphragm Valves
Data
-
Manufacturer information
provider logo
S-Valve

Sanitary valve manufacturer, Fitting, Equipment

Problem with product info?
Update request
Manufacturer
S-Valve
Brand
-
SKU
35109
Product Name
Pneumatic Tank Bottom Diaphragm Valve
Model Name
SVA183
Size
-
Weight
-
Product Details

Features

Size : ISO 1/2S~3S
Connection : ISO Ferrule, Weld
Material
  - Body : Forging STS316L
  - Bonnet : Casting STS304
  - Cylinder : STS304
Diaphragm
  - TFM - FDA, Single
  - TFM - FDA, Two piece
  - CFR21 Section 177.1550
Surface Treatment
  - Internal Ra≤0.4㎛
  - External Ra≤0.6㎛
  - Other : Electrolytic Polishing
Working Temperature -5℃~150℃
Working Pressure 6㎏/㎠
Operating Air Pressure 4~7㎏/㎠
