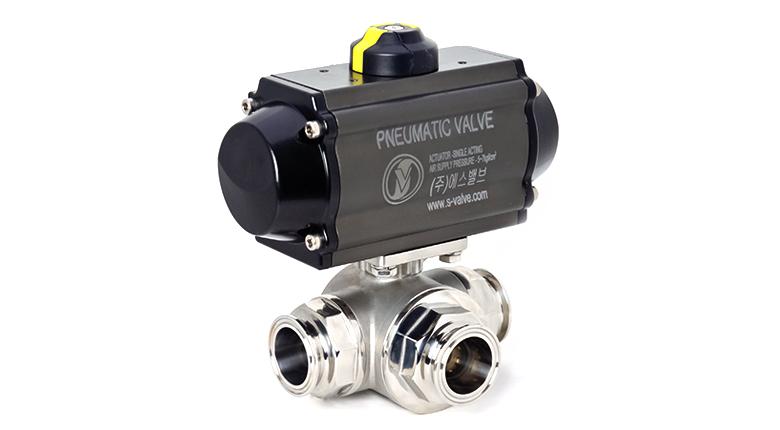

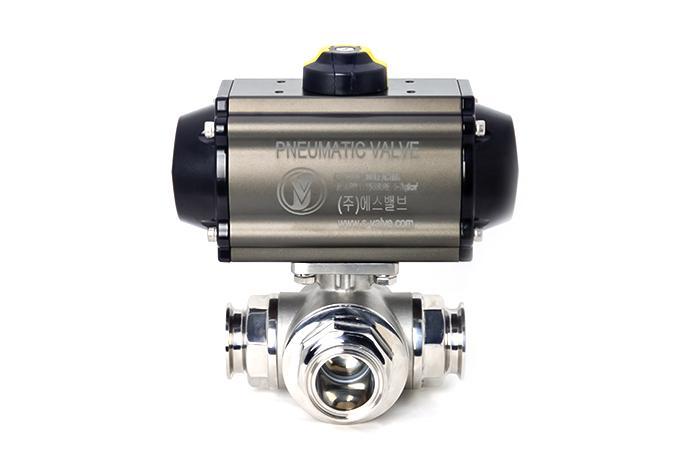

Pneumatic 3way Ball Valve
Model Name
SVA116
Series
Pneumatic Valves
Data
-
Manufacturer information
provider logo
S-Valve

Sanitary valve manufacturer, Fitting, Equipment

Problem with product info?
Update request
Manufacturer
S-Valve
Brand
-
SKU
35130
Product Name
Pneumatic 3way Ball Valve
Model Name
SVA116
Size
-
Weight
-
Product Details

Features

Size : ISO 1/2S~2S
Connection : ISO Ferrule, Male, Weld
Material
  - Body : Casting STS 316L, 304
  - Actuator : AL
Seat : Teflon
Actuator
  - AIR TORQUE
  - Single Acting, Double Acting
  - ISO Flange
Surface Treatment
  - Internal Ra≤0.4㎛
  - External Ra≤0.6㎛
  - Other : Electrolytic Polishing
Working Temperature -5℃~150℃
Working Pressure 6㎏/㎠

(주)에스밸브 Pneumatic 3way Ball Valve SVA116


S-Valve
Sanitary valve manufacturer, Fitting, Equipment
S-Valve Co., Ltd. is a sanitary valve enterprise specialized in sanitary valves, fittings, equipment. We are leading to customer satisfaction to meet the variety of customer requirements with accumulating experience and high-tech. With gradual technology advancing and market needs, we are making an effort to satisfy the needs by continuous research and development. We do our best to be trusted and to grow together with customers providing best products based on systematic technology establishment and excellent quality control.
