Product Details

Product Description

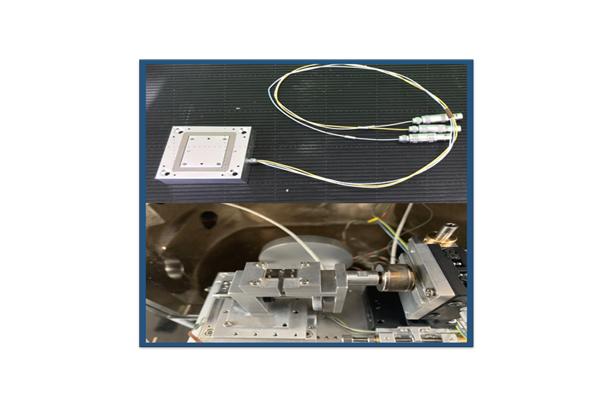

A device to test the tensile force by mounting the sample inside the SEM chamber and pulling it



Specifications

Nano Actuator
Open-loop travel, -20 to 120V 600(μm) Closed-loop travel 500(μm)
Closed-loop/ Open-loop resolution 1.4/0.5(nm) Closed-loop linearity error 0.03(%)
Repeatability ±5nm Pitch/yaw ±6 μrad±6 μrad
Stiffness in motion direction 0.1 N/μm Load Capacity 10 N max.
Lateral force 10 N max. Operating temperature range -20 to 80
Material Aluminum Dimension 60mmx60mmx15mm(height)
Mass 0.24kg
