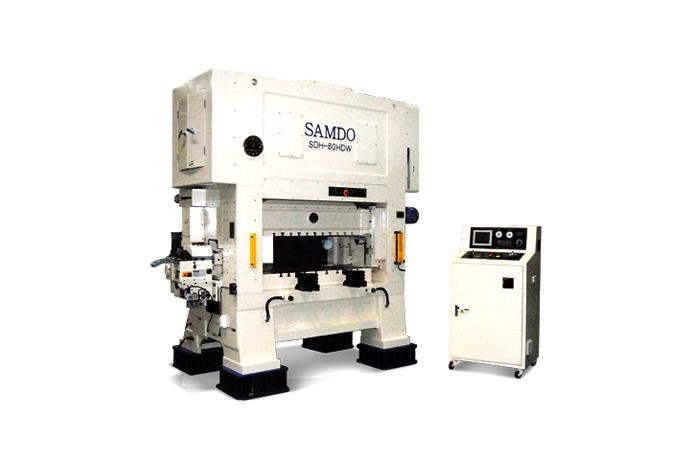

The characteristics of SDH-HD SERIES
- The frame is designed with computer simulation and it allows to high precision, super strength, high efficiency of machine
- Double crank of special steel
- Crank and balance weight are designed with dynamic balance analysis, so vibration and noise are minimized during high speed operation
- With specially accurate linear bearing is equipped in 8 side guide to maintain high precision curing slide up-down
- Cooling and heating device is provided to minimize temperature and bottom point variance at the high speed operation
SDH-HD Specification
Item/Model | unit | SDH-45HD | SDH-60HD | SDH-80HD | SDH-125HD | |||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Capacity | Ton | 45 | 45 | 80 | 125 | |||||||||
Stroke | mm | 20 | 30 | 40 | 20 | 30 | 50 | 20 | 30 | 50 | 20 | 30 | 60 | |
Stroke Per Minute | S. P. M | 200~ | 200~ | 150~ | 150~ | |||||||||
900 | 70 | 550 | 800 | 650 | 450 | 700 | 600 | 400 | 500 | 400 | 300 | |||
Die Height | mm | 265 | 260 | 255 | 305 | 300 | 290 | 3454 | 340 | 330 | 390 | 385 | 370 | |
Slide Adjustment | mm | 40 | 50 | 50 | 50 | |||||||||
Slide Arda | mm | 700×360 | 900×420 | 1000×500 | 1150×600 | |||||||||
Bolster Area | mm | 750×550 | 950×650 | 1050×750 | 1200×850 | |||||||||
Bolster Thickness | mm | 120 | 140 | 160 | 180 | |||||||||
Bed Opening | mm | 600×120 | 750×150 | 850×200 | 1000×200 | |||||||||
Main Motor | kW×p | 15×4 | 19×4 | 22×4 | 30×4 | |||||||||
Slide Adjust Motor | w×p | 0.4×6 | 0.4×6 | 0.75×6 | 0.75×6 | |||||||||
Air Pressure | kgf/㎠ | 5 | ||||||||||||
Weight(Approx.) | mm | 8 | 12 | 17 | 25 |
