Automotive maintenance equipment
• Precise alignment with 8 CCD sensors of high accuracy
• Both wire/wireless communication
(In the emergency, it can be used for wire communication)
• Durably designed new type of measuring heads
• Remote control panel is installed on each head
• Visible and comprehensible graphics for program
• Special filter to minize beam-block
• Customer data back up using USB or Floppy disk is available.
• Electric level sensors on each measuring head
• Spoiler - Compensation & measurement in case the setback is blocked
• 3D dynamic image for simulation of adjustment
• Instruction for advanced inspection & analysis of vechicles status for user s reference
• Elevated adjustment for CASTER/CAMBER
• Vehicle diagnostic program (Axle-offset, Side-offset, Difference of
wheel base and track)

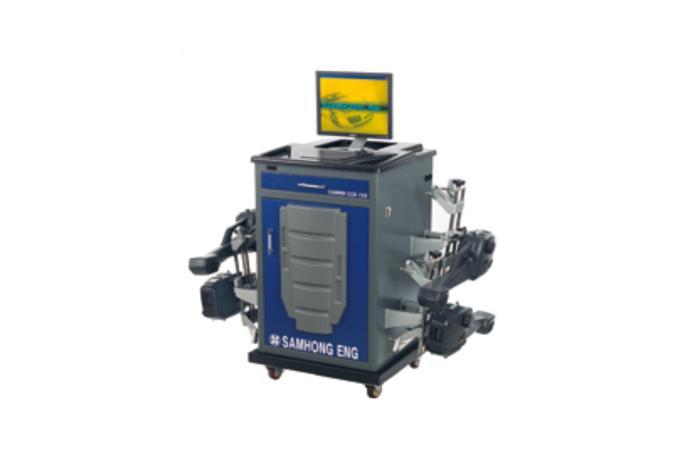

Model | CARPER-CCD 725 | |
Computer system | Intel Pentium4 | |
Sensor | 4Heads, 8 CCD image sensor | |
Operating system | Windows XP | |
Monitor | 19" LCD monitor | |
Printing device | Deskjet printer | |
Wheel clamps | 4-point clamps | |
11" - 22" range | ||
Measuring precision | Setback | 0.01 degree |
Toe | 0.01 degree | |
Caster | 0.02 degree | |
Camber | 0.02 degree | |
Measuring range | Setback | ±2.0 degree |
Toe | ±50mm | |
Caster | ±18.0 degree | |
Camber | ±8 degree | |
Transmission way | Both wires or wireless communication | |
Rated voltage | 100 - 240v, 50/60Hz | |
Rated Power | 250W |
