product Image

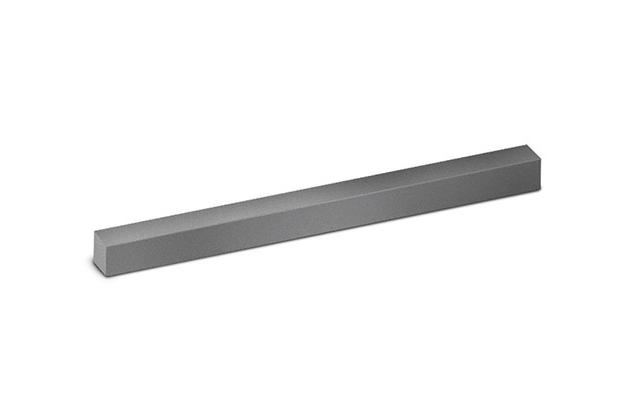

Block Core
Model Name
-
Series
Ferrite Core
Data
-
Manufacturer information
provider logo
SAMWHA ELECTRONICS

Soft Ferrite Core Manufacturer

Problem with product info?
Update request
Manufacturer
SAMWHA ELECTRONICS
Brand
-
SKU
134550
Product Name
Block Core
Model Name
-
Size
-
Weight
-
Product Details

Introduction

Assembling standard blocks makes larger dimension and variety of shapes customer wants. Very easy to get high output power for especially solar application.



Features

Fe-Si material is used to get higher DCB characteristic.



Applications

Sutable for reactors of solar power.



Cross Reference





Part No. Unit dimension
Length×Width×Height
A. value Path length Cross
Section
(㎤)
Window
Area
(㎤)
Comment
SB5315 50mm×30mm×15mm 121 18.71 4.5 10 Assembled
with 4 pcs
SB5320 50mm×30mm×20mm 165 18.28 6 5
SB6315 60mm×30mm×15mm 100 22.71 4.5 18
SB6320 60mm×30mm×20mm 135 22.28 6 12
SB7315 70mm×30mm×15mm 85 26.71 4.5 28
SB7320 70mm×30mm×20mm 115 26.28 6 21
SB8315 80mm×30mm×15mm 74 30.71 4.5 40
SB8320 80mm×30mm×20mm 100 30.28 6 32
