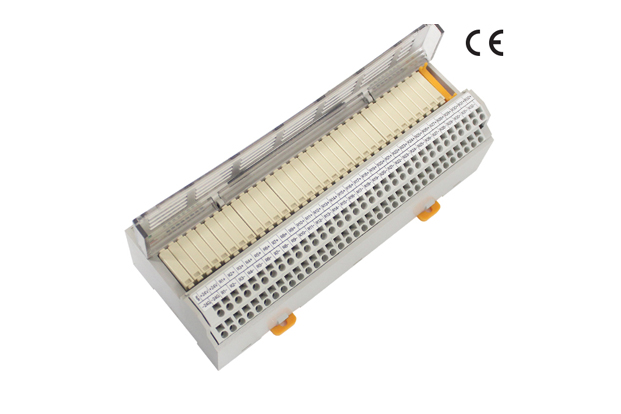

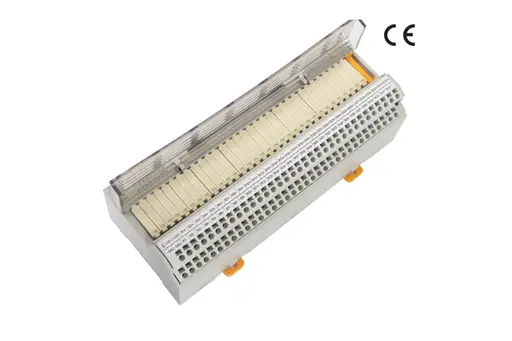

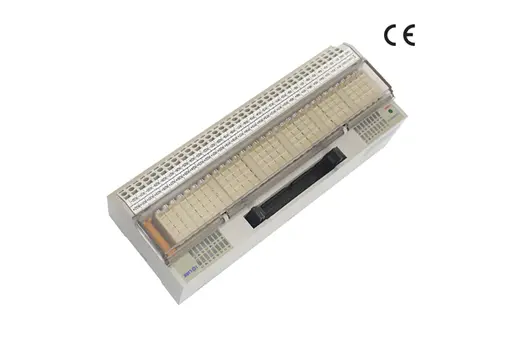

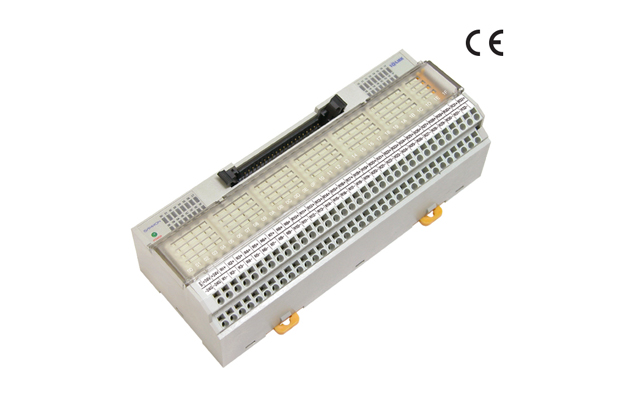

Slim Size Relay Terminal (R32C-E Series)
Model Name
R32C-YN-8E
Data
Manual-SAMWON ACT-IOLINK-Slim Size Relay Terminal (R32C-E Series)
Manufacturer information
provider logo
SAMWON ACT

FA Wiring Specialized Company, IOLINK, Interface Terminal Block, IONET, Remote I/O Terminal, QPORT, M12/M8 Sensor Distributor and more

Problem with product info?
Update request
Manufacturer
SAMWON ACT
Brand
-
SKU
133252
Product Name
Slim Size Relay Terminal (R32C-E Series)
Model Name
R32C-YN-8E, R32C-YN-8E/B, R32C-YN-C, R32C-YN-C/B, R32C-YN-4C, R32C-YN-4C/B, R32C-YN-8C, R32C-YN-8C/B, R32C-YP-8E, R32C-YP-8E/B, R32C-YP-C, R32C-YP-C/B, R32C-YP-4C, R32C-YP-4C/B, R32C-YP-8C, R32C-YP-8C/B, R32C-YN-8EV, R32C-YN-8EV/B, R32C-YN-CV, R32C-YN-CV/B, R32C-YN-4CV, R32C-YN-4CV/B, R32C-YN-8CV, R32C-YN-8CV/B, R32C-YP-8EV, R32C-YP-8EV/B, R32C-YP-CV, R32C-YP-CV/B, R32C-YP-4CV, R32C-YP-4CV/B
Size
-
Weight
-
Product Details

R32C-E Series

32-points, push-type, screwless terminal block mounting type



Features

- Supplied 2 models with TAKAMISAWA /PANASONIC relay mounted, Korea's first load-side individual contact-type 32-point relay board

- Push-type screwless terminal block, wiring speed is fast, saving work hours

- As producing various kinds of relay board such as individual, 4 points COM, and 8 points COM according to the user's use, so it can be selected and used



Main Features

Vibration-resistant internal structure

Functional product with very high connection reliability even in environments with severe vibrations as the terminal block is designed with a plate spring structure

Separate production of products equipped with Varistor for contact protection

Varistors are attached to both ends of the relay contact in parallel to protect the contact from arcs generated when the contact is opened/closed, and the life of the relay is extended

Supply of cables that can be connected to various PLCs and controllers

Able to respond to small quantity orders of various types by securing connectors used for domestic and overseas PLC, machine tools, DCS, DCC, etc. at all times

With/without removal button

Product with removal button : Easy to remove a wire with a flat or crosshead screwdriver Product without removal button : I/O check is possible even after wiring, wire can be removed with a suitable tool (flat screwdriver)


Model

R32C-YN-8E, R32C-YN-8E/B, R32C-YN-C, R32C-YN-C/B, R32C-YN-4C, R32C-YN-4C/B, R32C-YN-8C, R32C-YN-8C/B, R32C-YP-8E, R32C-YP-8E/B, R32C-YP-C, R32C-YP-C/B, R32C-YP-4C, R32C-YP-4C/B, R32C-YP-8C, R32C-YP-8C/B, R32C-YN-8EV, R32C-YN-8EV/B, R32C-YN-CV, R32C-YN-CV/B, R32C-YN-4CV, R32C-YN-4CV/B, R32C-YN-8CV, R32C-YN-8CV/B, R32C-YP-8EV, R32C-YP-8EV/B, R32C-YP-CV, R32C-YP-CV/B, R32C-YP-4CV, R32C-YP-4CV/B, R32C-YP-8CV, R32C-YP-8CV/B

R32C-NS5A-8E, R32C-NS5A-8E/B, R32C-NS5A-C, R32C-NS5A-C/B, R32C-NS5A-4C, R32C-NS5A-4C/B, R32C-NS5A-8C, R32C-NS5A-8C/B, R32C-PS5A-8E, R32C-PS5A-8E/B, R32C-PS5A-C, R32C-PS5A-C/B, R32C-PS5A-4C, R32C-PS5A-4C/B, R32C-PS5A-8C, R32C-PS5A-8C/B, R32C-NS5A-8EV, R32C-NS5A-8EV/B, R32C-NS5A-CV, R32C-NS5A-CV/B, R32C-NS5A-4CV, R32C-NS5A-4CV/B, R32C-NS5A-8CV, R32C-NS5A-8CV/B, R32C-PS5A-8EV, R32C-PS5A-8EV/B, R32C-PS5A-CV, R32C-PS5A-CV/B, R32C-PS5A-4CV, R32C-PS5A-4CV/B, R32C-PS5A-8CV, R32C-PS5A-8CV/B
