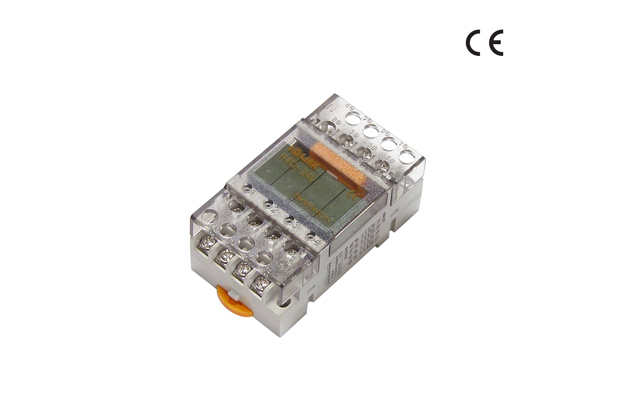

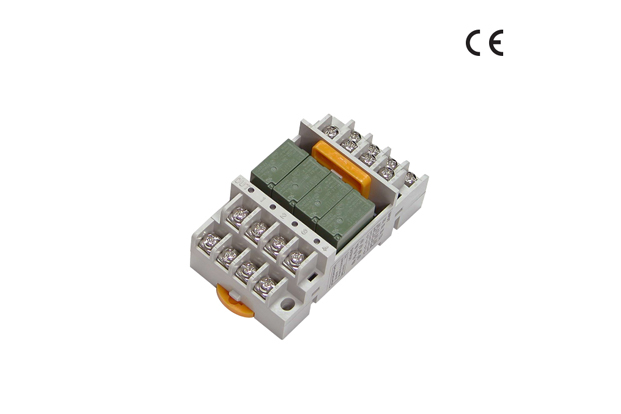

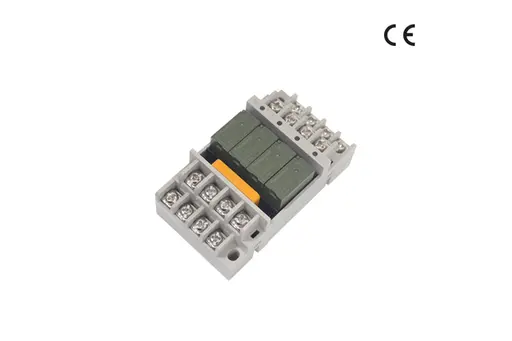

6.0~10.0㎜ Size Relay Terminal
Model Name
R4Q-24V
Data
Manual-SAMWON ACT-IOLINK-6.0~10.0㎜ Size Relay Terminal-R4Q-24V
Manufacturer information
provider logo
SAMWON ACT

FA Wiring Specialized Company, IOLINK, Interface Terminal Block, IONET, Remote I/O Terminal, QPORT, M12/M8 Sensor Distributor and more

Problem with product info?
Update request
Manufacturer
SAMWON ACT
Brand
-
SKU
133272
Product Name
6.0~10.0㎜ Size Relay Terminal
Model Name
R4Q-24V
Size
-
Weight
-
Product Details

R4Q-24V

Equipped with 4 points, width 10mm PANASONIC PQ relay



Features

- Long-life, large-capacity relay board resistant to inductive loads

- High workability due to DIN rail mounting and direct attachment to the middle plate

- Safe structure that enables wiring even with a protective cover installed

- Equipped with a relay socket, maintenance is easy and economical



Main Features

Equipped with long-life, large-capacity, width 10mm large power relay

Powerful switching range of 1a contact, 100㎂ 100mV 5A 250V AC, 5A 30V DC, suitable for inductive load / Strong against noise (Min. 8,000V) / Twin-type contact structure, very high contact reliability / Equipped with PANASONIC PQ relay (Made in Japan)

Safety protection cover attached

Significantly improved user safety by attaching a protective cover in preparation for the Product Liability Act

Realization of miniaturization of control panel with width 43.6mm

Design with safety first

Built-in surge absorption circuit (diode) protects the controller circuit and prevents malfunction / Attachment of LED for easy operation check
