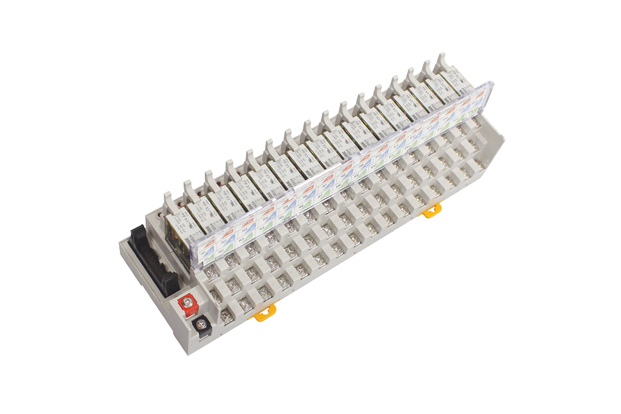

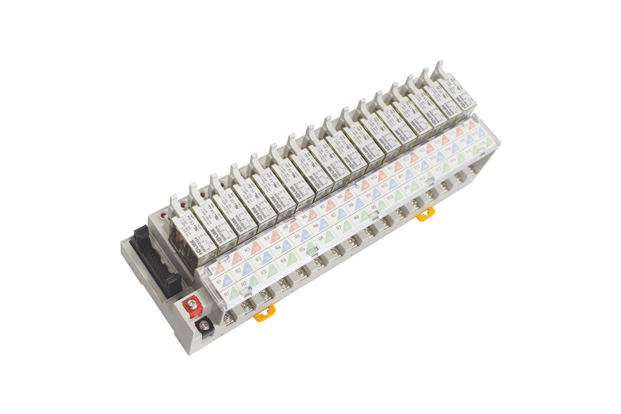

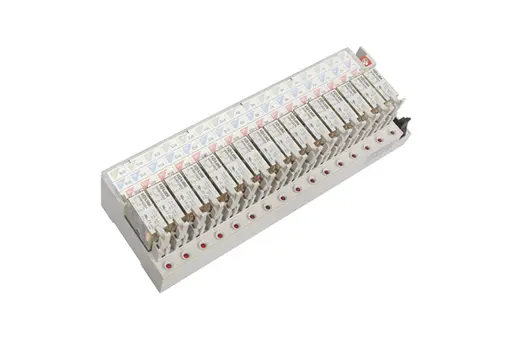

10[A] Size Relay Terminal (R16A Series)
Model Name
R16A-NC-DC24VC
Data
Manual-SAMWON ACT-IOLINK-10[A] Size Relay Terminal (R16A Series)
Manufacturer information
provider logo
SAMWON ACT

FA Wiring Specialized Company, IOLINK, Interface Terminal Block, IONET, Remote I/O Terminal, QPORT, M12/M8 Sensor Distributor and more

Problem with product info?
Update request
Manufacturer
SAMWON ACT
Brand
-
SKU
133300
Product Name
10[A] Size Relay Terminal (R16A Series)
Model Name
R16A-NC-DC24VC, R16A-PC-DC24VC
Size
-
Weight
-
Product Details

R16A Series

16-point type



Features

Contact capacity 10A, 1C contact, various coil voltages of DC24V, AC110V, and AC220V



Main Features

Equipped with SAMWON ACT SHN Power relay

Contact rated current of 10A, suitable for driving heavy loads such as large solenoid valves

Realization of miniaturization of control panel and reduction of working hours

When replacing the existing LY relay, the mounting area is reduced, and the input side is a one-touch connector type, which greatly reduces working hours

Safe design suitable for large relay boards

When replacing the relay, the relay can be removed with a simple operation of the mounted lever / Brass conductor plate contact applied to the relay output terminal to withstand the contact capacity of 10A
