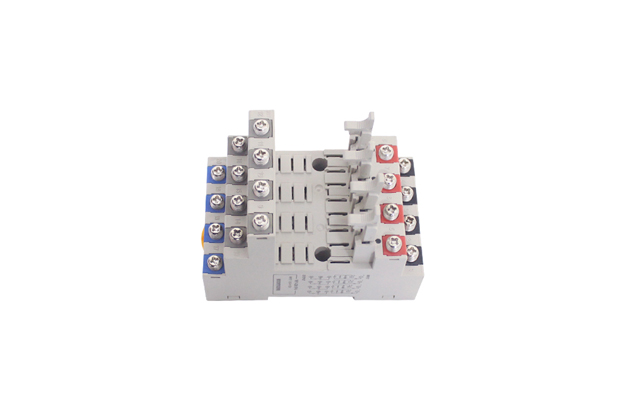

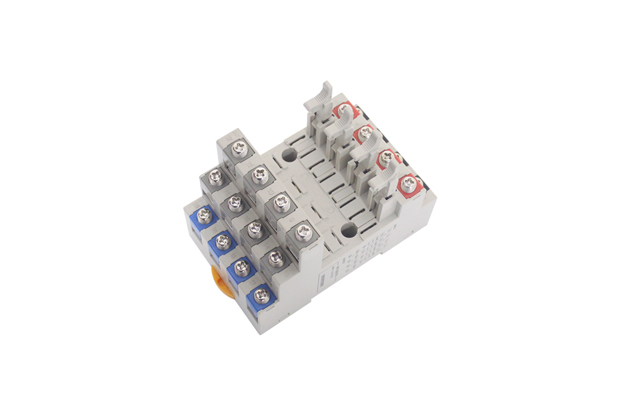

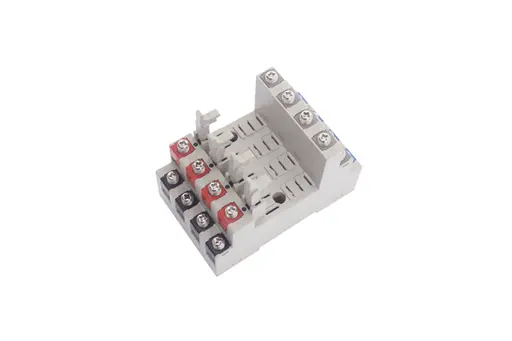

R4W-DC24VC
Hybrid 4-point relay board socket
Features
4-point hybrid socket that the user can choose and install the relay arbitrarily
Main Features
4-point relay board socket that can mount relays or SSRs arbitrarily Relays such as SHN, G2R, and CM series (solid-state) can be mounted arbitrarily by the user to configure the relay board according to the purpose of each I/O (relay sold separately) |
|
User-centered convenient and safe design When replacing the relay, the relay can be removed with a simple operation of the mounted lever / When using an O-type terminal, the bolt cover is installed so that the workability is very high as the bolt does not come off even if the bolt is loosened to the end |
Safe design suitable for large relay boards In order to withstand the contact capacity of 10A, the contact part of the relay board is designed with a 0.8t brass conductor plate instead of a PCB / Conductor parts such as bolts are equipped with safety covers to improve worker safety |
