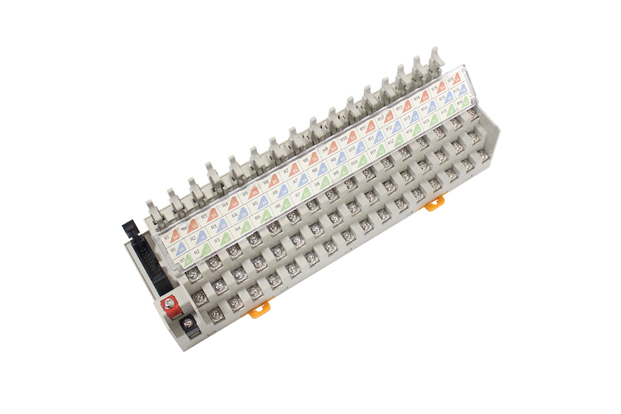

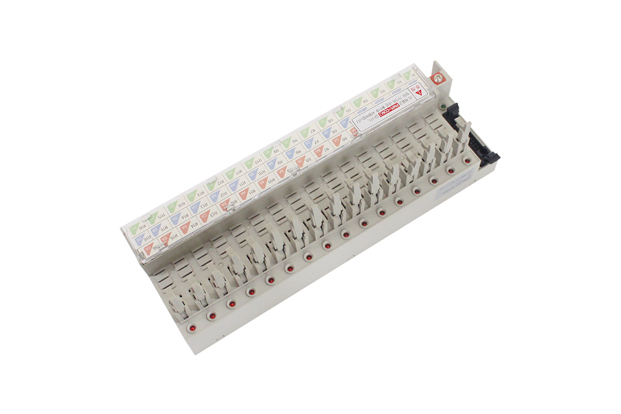

10[A] Size Relay Terminal (R16W Series)
Model Name
R16W-NC-DC24VC
Data
Manual-SAMWON ACT-IOLINK-10[A] Size Relay Terminal (R16W Series)
Manufacturer information
provider logo
SAMWON ACT

FA Wiring Specialized Company, IOLINK, Interface Terminal Block, IONET, Remote I/O Terminal, QPORT, M12/M8 Sensor Distributor and more

Problem with product info?
Update request
Manufacturer
SAMWON ACT
Brand
-
SKU
133308
Product Name
10[A] Size Relay Terminal (R16W Series)
Model Name
R16W-NC-DC24VC, R16W-PC-DC24VC
Size
-
Weight
-
Product Details

R16W Series

Hybrid 16-point relay board socket



Features

16-point hybrid socket that the user can choose and install the relay arbitrarily



Main Features

16-point relay board socket that user can mount relays or SSRs arbitrarily

Relays such as SHN, G2R, and CM Series (solid-state) can be mounted arbitrarily by the user to configure the relay board according to the purpose of each I/O (relay sold separately)

Korea's first 10A current capacity, connector-type relay board socket

Excellent noise resistance with a connector type, 16-point relay board socket that is optimal for I/O output of PLC, NC, and other controlle

User-centered convenient and safe design

When replacing the relay, the relay can be removed with a simple operation of the installed lever / Brass conductor plate contact applied to the relay output terminal to withstand the contact capacity of 10A

Main specifications

1c, 1a relay mountable, terminal block 10A capacity, surge absorption diode built-in, IO indicator lamp built-in, and DIN rail mountable and screw mountable
