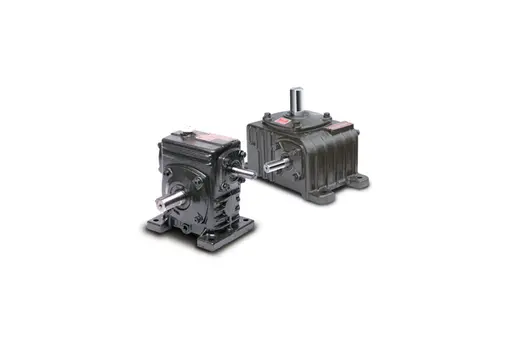

product Image

TOP

Standard Worm Reducer
Model Name
-
Data
Catalog-Samyang Reduction-Gear Unit-Standard Worm Reducer
Manufacturer information
provider logo
NARA SAMYANGIndustrial reducing machine manufacturer, Geared motor, Worm reducing machine, Planetary reducing machine, Solar lighting and more
Problem with product info?
Update request
Manufacturer
NARA SAMYANG
Brand
-
SKU
135177
Product Name
Standard Worm Reducer
Model Name
Size
-
Weight
-
Product Details
Products Overview
WB (Bottom Type) Input shaft is located at a lower part than the reduction gear's wormgear and output shaft is out horizontally. As the lubrication condition of Bottom Type is better than those of Up Type, it is more advantageous to use Bottom Type than Up Type in the case of large size or 2 stage types.
WU (Up Type) As input shaft is located at a upper part than the reduction gear's wormgear and output shaft is out horizontally, it is easy to install pulley and sprocket.
WV (Vertical Type) Output shaft is out in the vertical direction on the case floor reference plane. As the lubrication condition is also good, this is suitable for the low speed high load such as an agitator.
DSW (2 Stage Type) Being composed of 2 reduction gears, this can obtain high reduction gear ratio. (1/3600) As the input power is lowered by one step, careful selection is required.



Main Features
  • - Low price
  • - Beautiful design : Standardized shape, and the appearance is more beautiful and stable than the previous products.
  • - Lifetime improvement by optimal design : Optimized design of case, worm gear, worm and cover substantially improved the structure strength and lifetime of each part.
  • - Model No.(Center distance : mm) : 33, 49, 60, 77, 88, 96, 120, 125, 140
  • - Reduction gear ratio : 1/10, 1/15, 1/20, 1/30, 1/40, 1/50, 1/60, 1/100, 1/150, 1/200, 1/300, 1/400, 1/500, 1/600, 1/800, 1/900, Manufactured up to 1/3600
