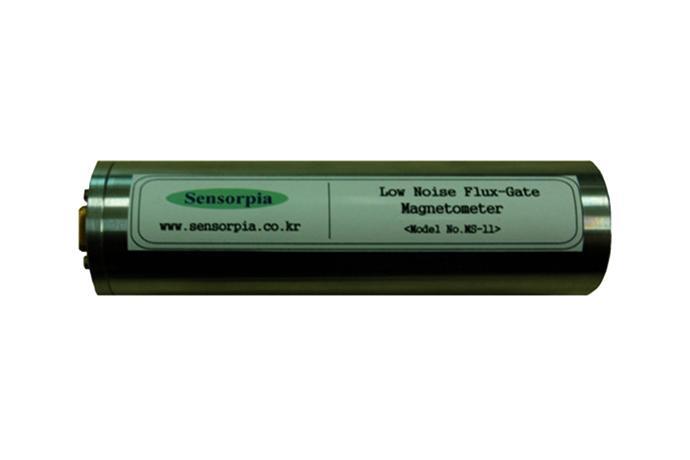

Low Noise Flux-Gate Magnetomete
Model Name
MS-11
Series
Magnetic Sensors
View All
Data
-
Manufacturer information
provider logo
Sensorpia

Flux-gate sensor, Blood pulse measuring sensor, Terfenol actuator, Saturable core tester of on-line tester and Precision magnetic measuring instruments

Problem with product info?
Update request
Manufacturer
Sensorpia
Product Type
Machine
Brand
-
SKU
40823
Product Name
Low Noise Flux-Gate Magnetomete
Model Name
MS-11
Size
-
Weight
-
Product Details

- Length : 174.5 mm
- Diameter : 50 mm
- Power supply : 24 V , 0.1 A
- Mearsuring range : +/-100,000 nT
- Linearity : 0.01%
- Digital output : resolution : 0.01 nT　　　　　　　
                      data rate : 10 data/s
　　　　　　     baud rate : 9600 bps
  　　 　　　     interface : RS232C or RS422


More products

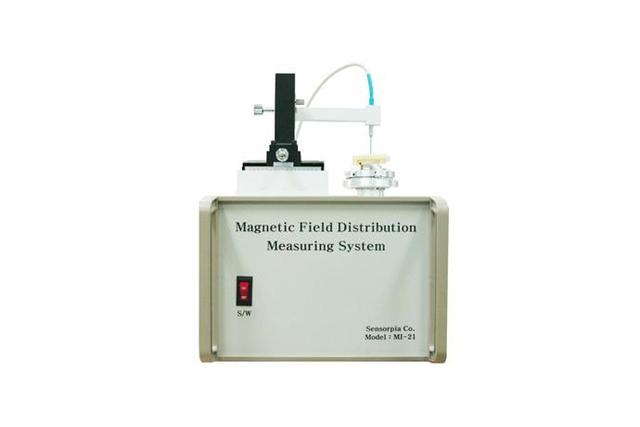

Magnetic Field Distribution Measuring System
Magnetic Field Distribution Measuring SystemMI-21
Magnetic domain veiwer
Magnetic domain veiwerMI-19

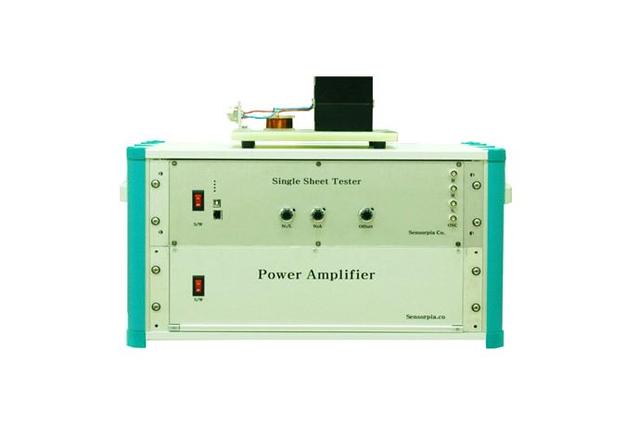

Single sheet tester
Single sheet testerMI-16

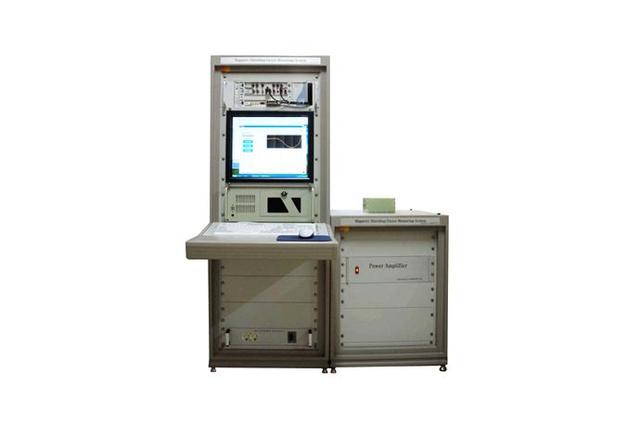

Shielding factor measuring Insteument
Shielding factor measuring InsteumentMI-07

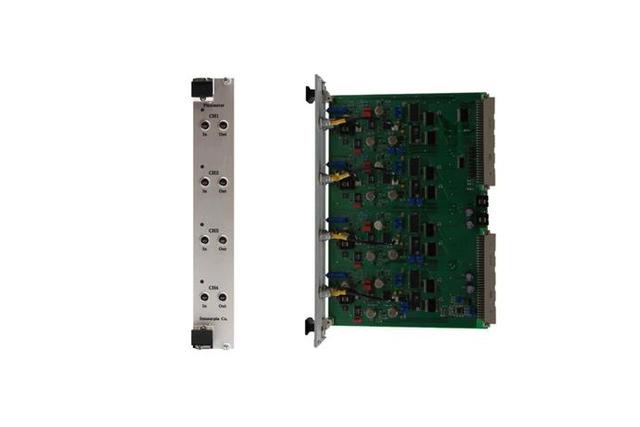

4-Channel Fluxmeter Module
4-Channel Fluxmeter ModuleMI-03-1
Current transfomer tester
Current transfomer testerMI-02

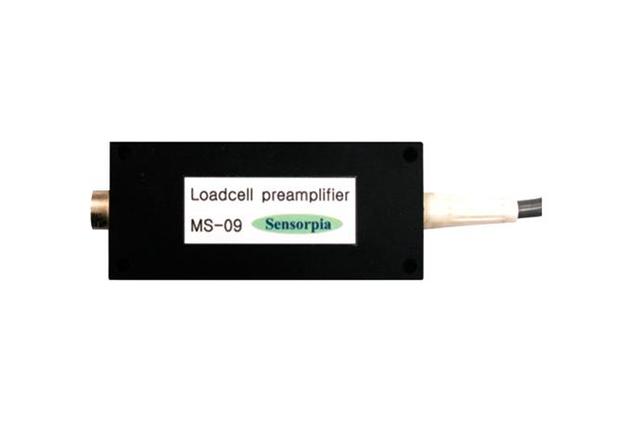

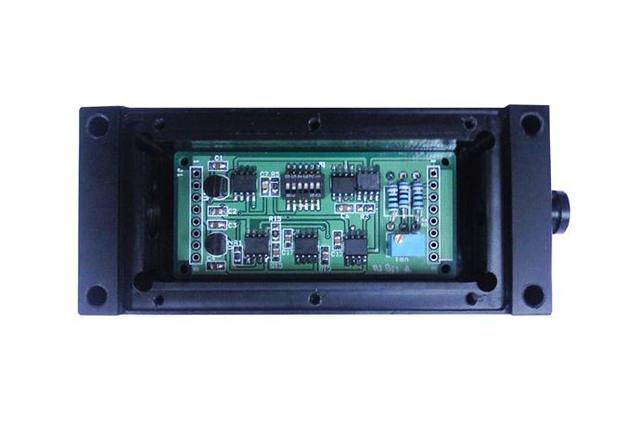

Loadcell preamplifier
Loadcell preamplifierMS-09
Terfenol-D actuator
Terfenol-D actuatorMS-03

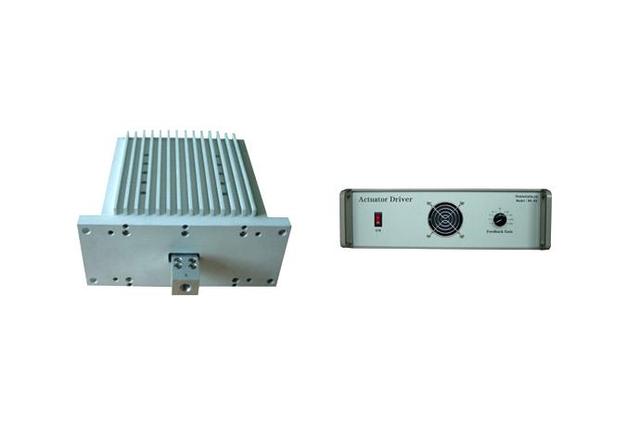

Dynamo-type Actuator
Dynamo-type ActuatorMS-04

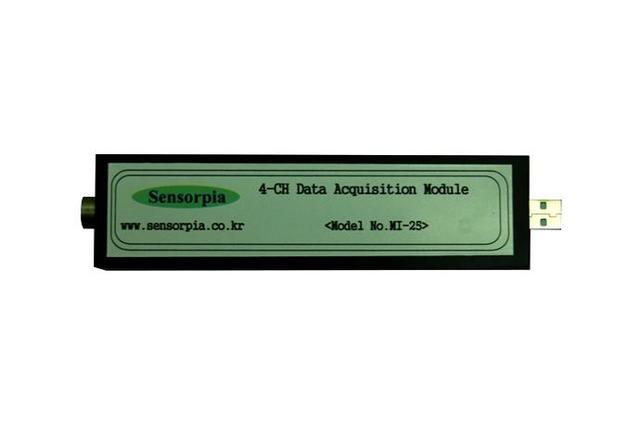

4-CH Data acquisition module
4-CH Data acquisition moduleMI-25

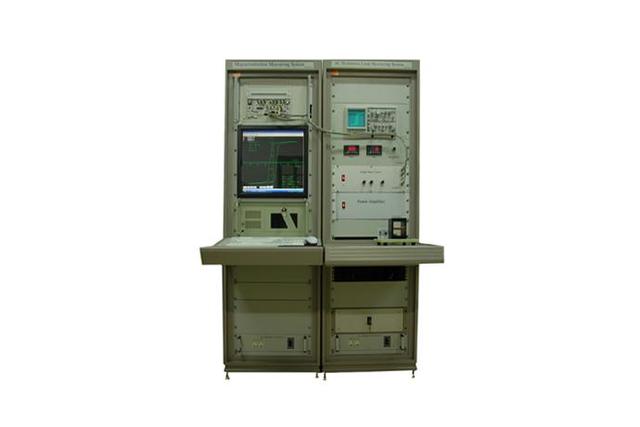

Core Loss Measuring System
Core Loss Measuring SystemMI-12

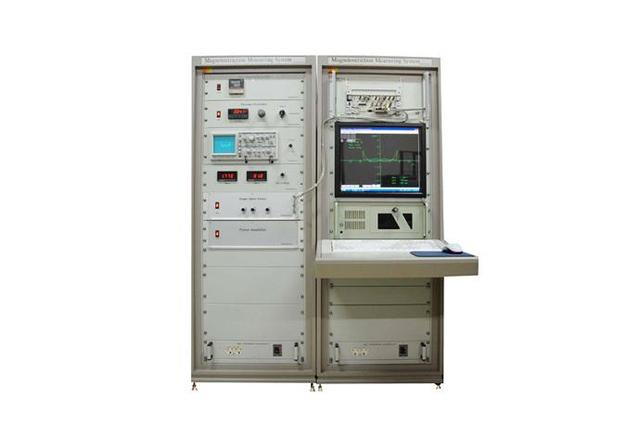

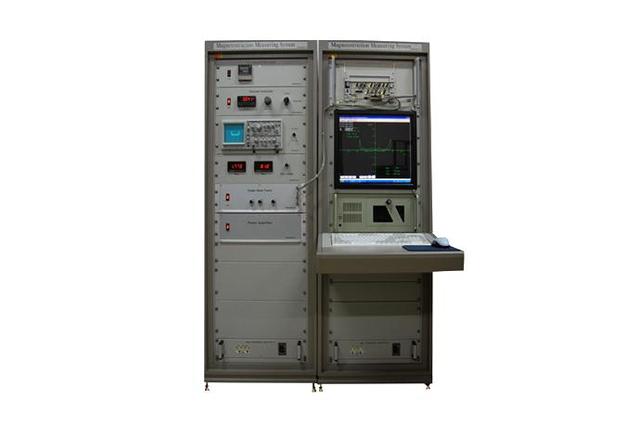

Magnetostriction measuring
