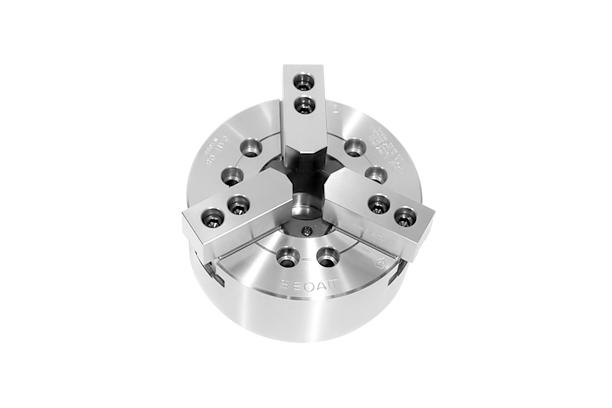

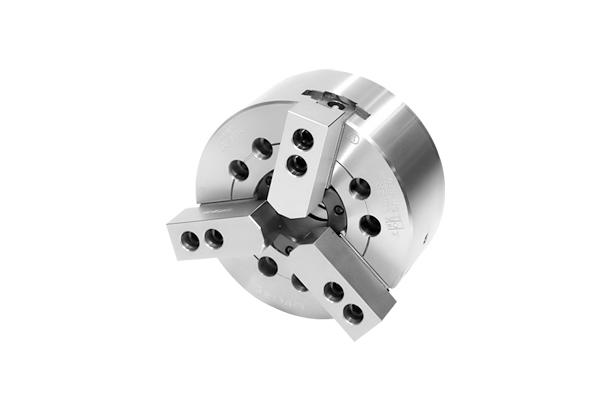

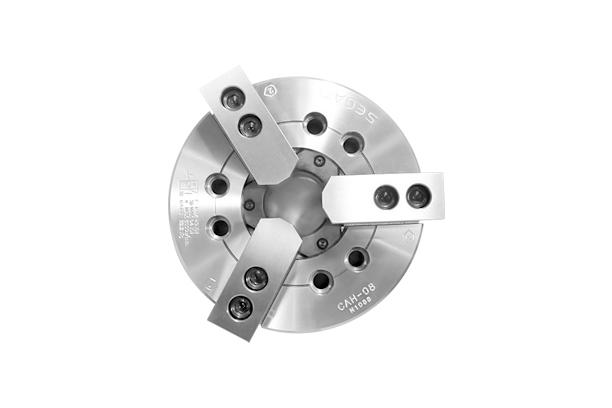

BIG BORE POWER CHUCK (CAH)
Model Name
CAH-05
Series
Chuck / Big Bore Type
Data
DRAWING-SEOAM-BIG BORE POWER CHUCK-CAH-05
Manufacturer information
provider logo
SEOAM

Precision gear manufacturer, Gear, Chuck, Cylinder, Curvic coupling, Reducing machine and more

Problem with product info?
Update request
Manufacturer
SEOAM
Brand
-
SKU
126653
Product Name
BIG BORE POWER CHUCK (CAH)
Model Name
CAH-05, CAH-06, CAH-08, CAH-10, CAH-12, CAH-15, CAH-18, CAH-21, CAH-24, CAH-32
Size
-
Weight
-
Product Details

Features

High Gripping Force : By sharply increasing dynamic gripping force, work efficiency and safety have been greatly improved.

High Speed : Strong gripping force and safety of performance are secured by optimal design, and high speed rotation is achieved.

Light weight : Equipment load has been reduced by weight reduction, and efficiency has been increased for fitful work and for both forward and reverse operations.

Durability : Heat treatment is performed to alloy steel, and high accuracy, high strength and high durability are realized by improving lubrication system.



Outward Drawing



Technical data and specifications


Model Description



Specifications

Spec
Model
Order NO.Spindle nose NO.Thru-hole(Diameter) mmJaw stroke(Diameter) mmPlunger stroke mmGripping MaxGripping MinMax. permissible input force KN(kgf)
CAH-051AH05-335.4101351017.5(1784)
CAH-061AH06A2-5465.5131691325(2500)
CAH-081AH08A2-6527.6182101140(4080)
CAH-101AH10A2-8778.52025.43150(5100)
CAH-121AH12A2-89110.2243043458(5916)
CAH-151AH15A2-1111810.6233813071(7240)
CAH-181AH18A2-1111810.6234503071(7240)
CAH-211AH21A2-11, 1514010.6235308790(9177)
CAH-241AH24A2-11, 1516510.42361011090(9177)
CAH-321AH32A2-15,202401834800152100(10193)


Spec
Model
Max. static gripping force KN(kgf)Max. Permissible speed r.p.mweight(With standard soft jaws)Gd moment of inertiamatching cylinderMatching hard jawMatching soft jaw
CAH-0536(3671)70006.70.7(0.071)YAH-05HJ-04A1SJ-05T1
CAH-0663(6426)600012.52.26(0.23)YAH-06HJ-06T1SJ-06T1
CAH-0894(9597)500022.366.7(0.68)YAH-08HJ-08T1SJ-08T1
CAH-10125(12740)420034.512.84(1.31)YAH-10HJ-10T1SJ-10T1
CAH-12147(15000)330055.328.71(2.93)YAH-12HJ-12A1SJ-12A1
CAH-15180(18355)250012089.14(9.09)YAH-15HJ-15T1SJ-15A1
CAH-18180(18355)2000164174.6(17.8)YAH-15HJ-15T1SJ-15A1
CAH-21234(23861)1700235351.1(35.8)YAH-15HJ-21B1SJ-21A1
CAH-24234(23861)1400293651.2(66.4)YAH-15HJ-21B1SJ-21A1
CAH-32240(24464)1200530598.4(61)YSH-21--



Dimension

Item
Model
ABCFGHJKLMN MaxN MinO Max
CAH-051356011049682.6333-M10151426.523.819.75
CAH-06169801405116104.8466-M10122033.530.723
CAH-08210911705150133.4526-M12152541.737.927
CAH-102541002205190171.4776-M16173054.550.331
CAH-123041152206190171.4916-M16183067.462.342
CAH-1538113330062602351186-M2030438276.743.8
CAH-1845013338063202351186-M2030438276.773.8
CAH-215301403806330.2330.21406-M22346098.593.287.5
CAH-246101493806330.2330.21656-M223260108.4103.2117.5
CAH-328001505206463.6463.62406-M243138153.5144.5190.6

Item
Model
O MinP MaxP MinQRSTU MaxVWXYZ
CAH-057.751-92310202M40X1.53-M645202654
CAH-061012-13112192M55X2.03-M660203372
CAH-081016.5-1.5391420.52M60X2.03-M666303995
CAH-10129.5-10.54416272M85X2.03-M8943046110
CAH-1212100-145021282.5M100X2.03-M81083051.8111
CAH-1518.311-126222395M130X2.03-M101396070165
CAH-1818.311-126222395M130X2.03-M101396070165
CAH-2121.511-126525395M155X3.03-M121708073180
CAH-2421.520-36525405M175X3.03-M121878073180
CAH-3219.529-57525.54010.4M250X3.03-M122608083.6160
