Float Type Level Switch
Model Name
SOL Series
Series
Level Switch
Data
Catalog-Seojin instech-Mini float, float type level switch
Manufacturer information
provider logo
SEOJIN INSTECHLevel sensor, Switch, Siemens, Transmitter, Ultrasonic, Radar, Flowmeter, Water level gauge, Orifice
Problem with product info?
Update request
Manufacturer
SEOJIN INSTECH
Brand
-
SKU
131427
Product Name
Float Type Level Switch
Model Name
SOL Series, ST Series
Size
-
Weight
-
Product Details

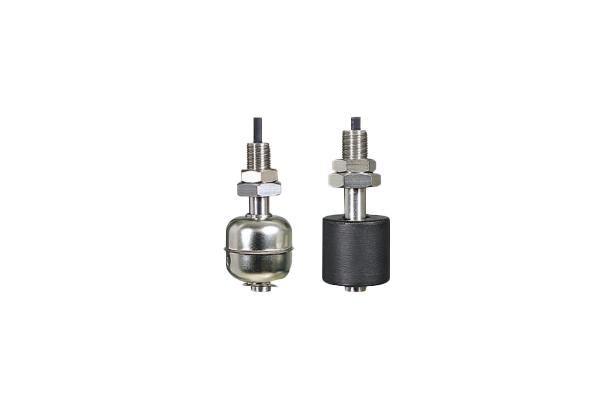

TYPE & MODEL Mini Float Type Level Switch
PRINCIPLE It is operated by using reed switch and a magnet. As the float rises or falls with the level of the liquid, the reed switch in the pipe is activated by the magnet in the float and relay point comes out. This relay point can be used single point for low level or high level at small-capacity tank. When ordering, various designs are available depending on usages and various materials according to kinds of liquid.
RANGE TEMPERATURE PRESSURE
  • Standard: 57mm
  • Optional: Within 1000mm
  • SOL-5 : -10℃∼100℃
  • SOL-2B/2P : -10℃∼90℃
  • SOLH-3 : -10℃∼90℃
  • SOL-5/2B : Max. 10㎏/㎠
  • SOL-2P : Max. 5㎏/㎠
  • SOLH-3 : Max. 5㎏/㎠
FEATURES OUTPUT APPLICATION
  • Compact size
  • Low cost
  • Reliability/Long switch life
  • Usable with wide range of liquids
  • Easy installation
  • Standard : 1 point
  • Optional : 2∼4 point
  • Contact capacity :
    0.5A 300V AC
    0.5A 300V DC
  • Coffee vending machine
  • Humidifier
  • Medical devices
  • Vending machine analyzer
  • Air conditioner and cooler
  • Agricultural machines
  • Oil pressure & lubricant oil device
  • Oil pressure machines
INDUSTRY Building/Factory Automation

MODEL: SOL-2A, SOL-2B, SOL-2P, SOL-5, SOLH-3, SOL-V

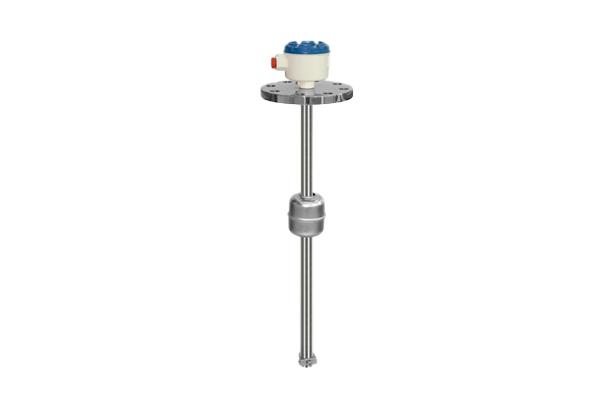

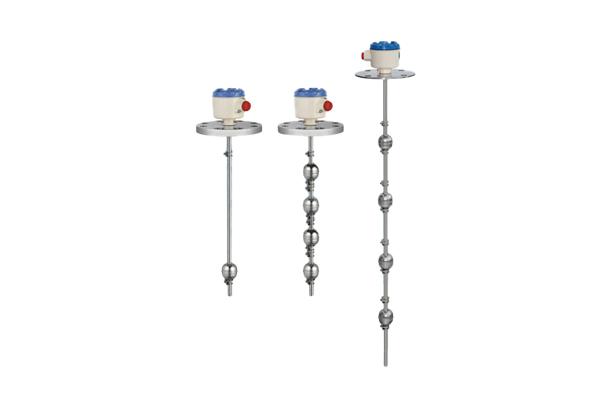

TYPE & MODEL Float Type Level Switch
PRINCIPLE

The principle of the reed switch and magnet's operation is identical to that of the SOL model on the left, but it is designed to be applicable to various industrial sites with adverse environments, and unlike the SOL, which is for single electric contact, a number of electric contacts can be installed. the concept of selective control was applied to the separately sold Control Unit's micro processor in order to enable the device to adjust to various and complicated requirements of industrial sites.

- Control unit (separately sold)

RANGE TEMPERATURE PRESSURE
  • Within 5m
  • 304SS/316SS/PTFE : -10℃∼100℃
  • PVC : -10℃∼60℃
  • 304SS/316SS : Max. 10㎏/㎠
  • PVC/PTFE : Max. 2㎏/㎠
FEATURES OUTPUT APPLICATION
  • Low cost
  • Easy installation
  • Applied to various fluid tanks
  • Various materials are applied to the sensor according to the measured substance and the tank condition
  • SLCA-HL can turn the Pump ON and OFF. It uses the HH and LL alarm.
  • Two-wire type possible.
  • Standard : 1∼4 point
  • Optional : 5 point
  • Contact capacity : 0.5A 300V AC / 0.5A 300V DC
  • Fuel tank
  • Water purification plant
  • Bunker C oil & oil tank
  • Sewage processing
  • Beverage factory
  • Chemical plant
INDUSTRY Building/Factory Automation, Industrial Plant, Petrochemistry, Environmental Water Treatment

MODEL: ST-1S-A-1-A-1-A-1-B-3, ST-1S-A-1-A-1-C-1-B-3, ST-1S-A-1-A-1-D-1-B-3, ST-1S-A-1-B-1-B-2-C-3, ST-1S-A-1-C-1-A-1-B-3, ST-1S-A-1-D-1-D-1-B-3, ST-2S-B-1-A-1-A-1-B-3, ST-2S-B-1-A-1-C-1-B-3, ST-2S-B-1-A-1-D-1-B-3, ST-2S-B-1-B-1-A-2-C-3, ST-2S-B-1-C-1-A-1-B-3, ST-2S-B-1-D-1-D-1-B-3, ST-3S-C-1-A-1-A-1-B-3, ST-3S-C-1-A-1-C-1-B-3, ST-3S-C-1-A-1-D-1-B-3, ST-3S-C-1-B-1-B-2-C-3, ST-3S-C-1-C-1-A-1-B-3, ST-3S-C-1-D-1-D-1-B-3, ST-4S-D-1-A-1-A-1-B-3, ST-4S-D-1-A-1-C-2-B-3, ST-4S-D-1-A-1-D-1-B-3, ST-4S-D-1-B-1-A-1-B-3, ST-4S-D-1-C-1-A-1-B-3, ST-4S-D-1-D-1-D-1-B-3, ST-4S-D-2-A-1-B-1-C-3, ST-4S-D-2-A-1-C-1-B-3, ST-4S-D-2-A-1-D-1-B-3, ST-4S-D-2-B-1-A-1-B-3, ST-4S-D-2-C-1-A-1-B-3, ST-4S-D-2-D-1-D-1-B-3
