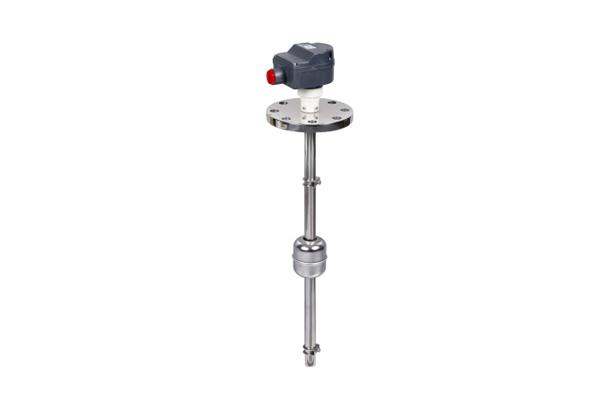

product Image

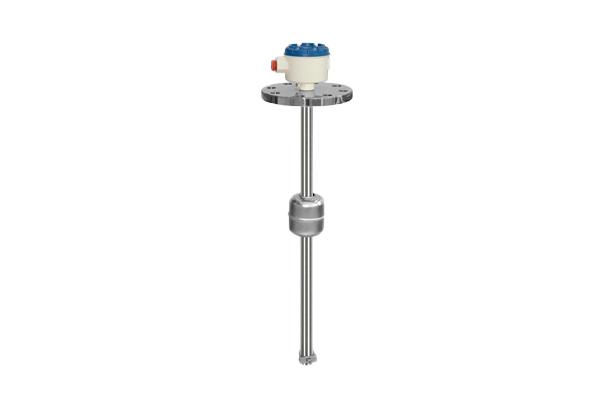

product Image

TOP

Float Type Level Transmitter
Model Name
ST-600 Series
Series
Level Transmitter
Data
Catalog-Seojin instech-Float type level transmitter (ST-600)
Manufacturer information
provider logo
SEOJIN INSTECHLevel sensor, Switch, Siemens, Transmitter, Ultrasonic, Radar, Flowmeter, Water level gauge, Orifice
Problem with product info?
Update request
Manufacturer
SEOJIN INSTECH
Brand
-
SKU
131496
Product Name
Float Type Level Transmitter
Model Name
ST-600 Series
Size
-
Weight
-
Product Details
TYPE & MODEL Float Type Level Transmitter
PRINCIPLE

A circuit, in which the resistance and the reed s/w is serially connected in intervals of 1-2cm, is installed inside the pipe. When the float, equipped with the magnet, moves up and down the pipe by buoyancy, the reed s/w is cut short, and the total resistance value changes until the cutting is summed. The resistance value that had changed based on the level of the fluid is transformed into an electric current signal DC 4-20mA, and put out. This is the most general level control and instruction device.

- Separately sold Control Unit

RANGE TEMPERATURE PRESSURE
  • Max. 6m
  • 304/316SS/PTFE : -10℃∼100℃
  • PVC : -10℃∼60℃
  • SUS304/316 : Max. 10㎏/㎠
  • PVC/PTFE : Max. 2㎏/㎠
FEATURES OUTPUT APPLICATION
  • Low cost
  • Wide awareness and installation experience
  • Selection of the detection material regarding various substances to be measured
  • Remote control
  • Explosion proof type possible
    (Ex d ⅡB T5 or T4)
  • 4∼20mA DC
  • Water tanks installed in upper stories, Industrial water, Pure water, Sewage, Drinking water, Water reserves, Cooling water
  • LPG, Chemicals, Fuel tank, Paint, Various strong acid and alkali fluid
  • Tanks for ships (Optional)
  • Others
POWER SUPPLY
  • 24V DC
REMARK MAT'L : 304/316SS, PVC, PTFE
INDUSTRY Building/Factory Automation

MODEL: ST-600-A(B)-1-A-1-A-2-A, ST-600-A(B)-1-A-1-A-3-A, ST-600-A(B)-1-A-1-B-2-A, ST-600-A(B)-1-A-1-B-3-A, ST-600-B-1-A-1-D-2-A, ST-600-B-1-A-1-D-3-A, ST-600-C-1-A-1-B-1(2inch), ST-600-C-1-A-1-B-1, ST-600-C-1-A-1-C-1(2inch), ST-600-C-1-A-1-C-1, ST-600-D-1-A-1-B-1, ST-600-D-1-A-1-C-1
