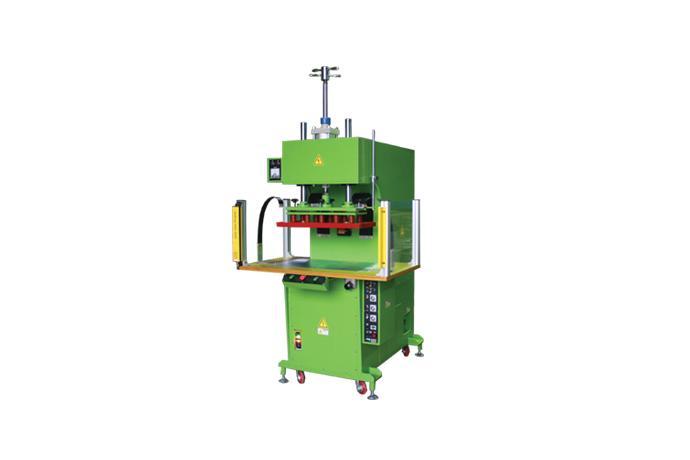

Upholstery (CAR) Welding Machine
Model Name
SW-MBS
Series
Welding Machine
Data
-
Manufacturer information
provider logo
SEWOO ENGManufacturer of High Frequency Welding Machine, Blister Welding Machine, Simultaneous Welding & Cutting Machine and more
Problem with product info?
Update request
Manufacturer
SEWOO ENG
Brand
-
SKU
13054
Product Name
Upholstery (CAR) Welding Machine
Model Name
SW-MBS
Size
-
Weight
-
Product Details

SW-MC

Treadle operated accuracy of C-type press

with 2-guide post, linear motion bearing

, with adjustment and securing

of stroke position.

Pneumatic cylinder and welding timer

will assure you an easy operation

of the machines and may be

equipped at your request.


SPECIFICATION

- Power Source : 220/380V 3Φ 60Hz

As per customer's instructions(overseas)

- MAX. Power Consumption : 15KVA

- MAX. High Frequency Output : 7.5kW

- Operating Frequency : 27.12MHz

- Oscillator Tube : 7T69RB

- Rectifier : Silicon diode

- Safety Device : Ultra sensitive

arc suppressor, O.C.R

- Max. Pressure : 923Kgf

- Pressure Device : pneumatic

cylinder pressure

- Stroke : 300mm

- Size of Electrode : 300 x 700mm

- Size of Platen : 450 x 850mm

- Overall Dimensions :

- Gross weight :

SEWOO ENGManufacturer of High Frequency Welding Machine, Blister Welding Machine, Simultaneous Welding & Cutting Machine and more
Sewoo Electronics is a company that specializes in the development and production of industrial high frequency machinery and automation machinery along with binding, heat treatment, and dryinghigh frequency equipment. As an engineering company, we are currently focusing on machinery development that is connected with factory automation system. We are confident that our technology is the best in the field, and our executives and staff members are working hard to secure our position. The binding type high frequency machinery in our company which provides the best performance in any environment is being customized for automobile exterior process automation binding, along with our general processing machinery. Our company will strive to meet our customer's needs by consistently developing new products based on our technology, expertise, and RF related development.
