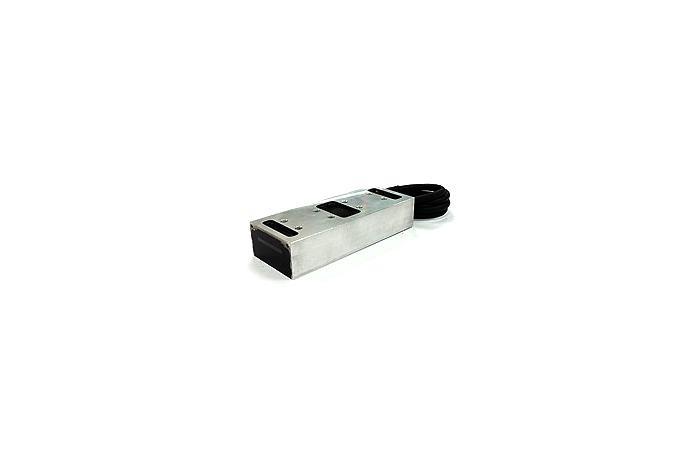

Linear Motor (Cased IronCore Type)
Model Name
SWL-ePS Series
Series
Linear Motor
Data
SWL-ePS Series
Manufacturer information
provider logo
SEWOO INDUSTRIAL SYSTEMSBLCD motor, DC motor, Linear motor, Linear stage and Small motor manufacturer
Problem with product info?
Update request
Manufacturer
SEWOO INDUSTRIAL SYSTEMS
Brand
-
SKU
39533
Product Name
Linear Motor (Cased IronCore Type)
Model Name
SWL-ePS Series
Size
-
Weight
-
Product Details

Basic Specifications


Rating Condition : Continuous
Voltage Endurance : AC1500V, 1Min.
Operating Temperature : 0~40℃
Coil Insulation Class : F Class (155℃)
Hall Effect Device : Optional
Power Supply Requirement : Trapezoidal or Sinusoidal 3-phase Brushless Amplifier




Performance Specifications

Model Unit SWL-ePS10C SWL-ePS20C SWL-ePS30C SWL-ePS40C
Continuous Force [ N ]

55

110

160

215

Current [ Arms ]

2.3

2.3

2.3

2.3

Max. Force [ N ]

150

295

440

580

Current [ Arms ]

6.9

6.9

6.9

6.9

Force Constant (Kf) [ N/Arms ]

24.8

49.8

75.2

97.3

Back EMF Constant (Ke) [ Vrms/(m/sec)]

8.3

16.6

25.1

32.4

Electrical Time Constant [ msec ]

3.44

3.44

3.04

3.56

Resistance (L to L) [ Ω ]

4.37

8.81

13.02

17.34

Inductance (L to L) [ mH ]

15.05

30.33

39.57

61.7

Attraction Force [ N ]

200

400

610

810

Mover Weight [ kg ]

0.5

0.9

1.2

1.6
