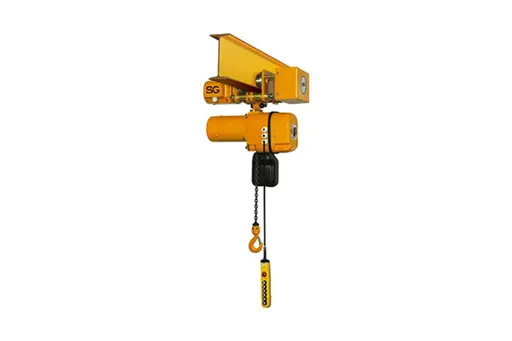

product Image
체인 호이스트 (CHAIN HOIST (MOTOR TROLLEY))
Model Name
SCT-S(D)250
Data
-
Manufacturer information
provider logo
SG ENGINEERING

Industrial Hoists, Cranes, Crane Parts Manufacturer

Problem with product info?
Update request
Manufacturer
SG ENGINEERING
Brand
-
SKU
133408
Product Name
체인 호이스트 (CHAIN HOIST (MOTOR TROLLEY))
Model Name
SCT-S(D)250, SCT-S(D)490, SCT-S(D)500, SCT-S(D)1000, SCT-S(D)1250, SCT-S(D)1500, SCT-S(D)1800D, SCT-S(D)2000D, SCT-S(D)2500D, SCT-S(D)3000D, SCT-S(D)2000, SCT-S(D)3000, SCT-S(D)5000D, SCT-S(D)7500D, SCT-S(D)10000D
Size
-
Weight
-
Product Details

Motor Trolley Type

Table

Frame Model
Capacity
(kg)
Hoisting Motor [single] Hoisting Motor [Dual] Traversing Motor
Load
Chain
(mm x Falls)
Net
Weight
(kg)
I-Beam
Width
(mm)
Min
Radius
For Curve
(mm)
Dimension
Power (kw) Speed (m/min) Power (kw) Speed (m/min) Power(kw) x Pole Speed (m/min) Single Dual
50Hz 60Hz 50Hz 60Hz 50Hz 60Hz 50Hz 60Hz 50Hz 60Hz 50Hz 60Hz A B C D E A
A
SCT-S(D)250
250
0.42 x 4P 0.5 x 4P 4.7 5.6 0.42/0.21 x 4/8P 0.5/0.25 x 4/8P 4.7/2.4 5.6/2.8
0.33 x 4P
(0.22 x 6P)
[0.17 x 8P]
0.4 x 4P
(0.27 x 6P)
[0.2 x 8P]
16.7
(11.1)
[8.3]
20.0
(13.3)
[10.0]
Ø5.0x1 62 75~125 1200 335 238 130 193 444 355
0.42 x 4P 0.5 x 4P 7.0 8.4 0.42/0.21 x 4/8P 0.5/0.25 x 4/8P 7.0/3.5 8.4/4.2 Ø5.0x1 62 75~125 1200 335 238 130 193 444 355
SCT-S(D)490 490 0.54 x 4P 0.65 x 4P 4.7 5.6 0.42/0.21 x 4/8P   4.7/2.4 5.6/2.8 Ø5.0x1 64 75~125 1200 335 238 130 193 444 355
SCT-S(D)500
500
0.54 x 4P 0.65 x 4P 4.7 5.6 0..63/0.21 x 4/12P 0.7/0.23 x 4/12P 4.7/1.6 5.6/1.9 Ø5.0x1 64 75~125 1200 335 238 130 193 444 355
0.92 x 4P 1.1 x 4P 7.0 8.4 - - - - Ø5.0x1 64 75~125 1200 335 238 130 193 452 355
B
SCT-S(D)1000 1000 1.25 x 4P 1.5 x 4P 5.8 7.0 1.25/0.63 x 4/8P 1.5/0.75 x 4/8P 5.8/2.9 7.0/3.5 Ø7.1x1 82 75~125 1200 295 335 139 212 440 335
SCT-S(D)1250 1250 1.7 x 4P 2.0 x 4P 5.8 7.0 1.25/0.63 x 4/8P 1.5/0.75 x 4/8P 5.8/2.9 7.0/3.5 Ø7.1x1 82 75~125 1200 295 335 139 212 440 335
SCT-S(D)1500 1500 2.1 x 4P 2.5 x 4P 6.7 8.0 2.1/1.05 x 4/8P 2.5/1.25 x 4/8P 6.7/3.4 8.0/4.0
0.33 x 4P
(0.22 x 6P)
[0.17 x 8P]
0.4 x 4P
(0.27 x 6P)
[0.2 x 8P]
15.8
(10.0)
[7.9]
19.0
(12.0)
[9.5]
Ø8.1x1 90 100~150 1500 295 365 140 213 460 335
SCT-S(D)1800D 1800 1.25 x 4P 1.5 x 4P 2.9 3.5 1.25/0.63 x 4/8P 1.5/0.75 x 4/8P 2.9/1.5 3.5/1.8 Ø7.1x2 102 100~150 1500 295 365 140 245 530 335
SCT-S(D)2000D 2000 1.25 x 4P 1.5 x 4P 2.9 3.5 1.25/0.63 x 4/8P 1.5/0.75 x 4/8P 2.9/1.5 3.5/1.8 Ø7.1x2 102 100~150 1500 295 365 140 245 530 335
SCT-S(D)2500D 2500 1.7 x 4P 2.0 x 4P 2.9 3.5 1.25/0.63 x 4/8P 1.5/0.75 x 4/8P 2.9/1.5 3.5/1.8 Ø7.1x2 102 100~150 1500 295 365 140 245 530 335
SCT-S(D)3000D 3000 2.1 x 4P 2.5 x 4P 3.4 4.0 2.1/1.25 x 4/8P 2.5/1.25 x 4/8P 3.4/1.7 4.0/2.0 Ø8.0x2 115 100~150 1500 295 365 140 308 610 335
C
SCT-S(D)2000 2000 2.9 x 4P 3.5 x 4P 6.8 8.2 2.9/1.5 x 4/8P 3.5/1.75 x 4/8P 6.8/3.4 8.2/4.1 Ø11.2x1 135 100~150 1500 353 313 190 271 650 386
SCT-S(D)3000 3000 2.9 x 4P 3.5 x 4P 5.0 6.0 2.9/1.5 x 4/8P 3.5/1.75 x 4/8P 5.0/2.5 6.0/3.0 Ø11.2x1 135 100~150 1500 353 313 190 271 650 386
SCT-S(D)5000D 5000 2.9 x 4P 3.5 x 4P 2.5 3.0 2.9/1.5 x 4/8P 3.5/1.75 x 4/8P 2.5/1.3 3.0/1.5 0.33 x 4P
(0.22 x 6P)
[0.17 x 8P]
0.4 x 4P
(0.27 x 6P)
[0.2 x 8P]
13.3
(8.3)
[6.7]
16.0
(10.0)
[8.0]
Ø11.2x2 194 125~175 2000 370 313 200 337 880 405
SCT-S(D)7500D 7500 2.9 x 4P 3.5 x 4P 1.7 2.0 2.9/1.5 x 4/8P 3.5/1.75 x 4/8P 1.7/0.8 2.0/1.0 0.63 x 4P 0.75 x 4P 12.5 15 Ø11.2x3 384 125~175 2000 465 330 260 430 1150 -
SCT-S(D)10000D 10000 2.9 x 4P 3.5 x 4P 2.5 3.0 2.9/1.5 x 4/8P 3.5/1.75 x 4/8P 2.5/1.3 3.0/1.5 1.25 x 4P 1.5 x 4P 12.5 15 Ø11.2x4 524 125~175 2000 465 330 465 465 1120 -
