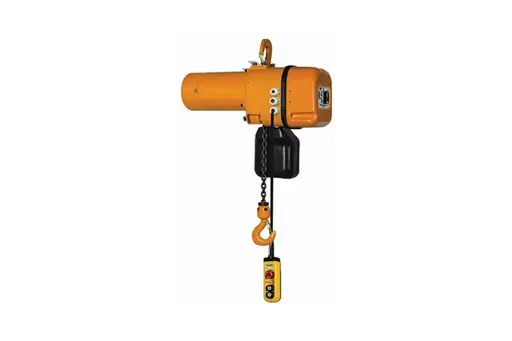

Single Phase Type
Table
Frame Model
|
Capacity
(kg) |
Hoisting Motor [single] |
Load
Chain (mm x Falls) |
Net
Weight (kg) |
Dimension | ||||||||
Power (kw) | Speed (m/min) | Single | |||||||||||
50Hz | 60Hz | 50Hz | 60Hz | A | B | C | D | E | |||||
A
|
SCO-S250-SP
|
250
|
0.42 x 4P | 0.5 x 4P | 4.6 | 5.6 | Ø5.0x1 | 36 | 240 | 196 | 157 | 165 | 410 |
0.42 x 4P | 0.5 x 4P | 7.0 | 8.4 | Ø5.0x1 | 36 | 240 | 196 | 157 | 165 | 410 | |||
SCO-S(D)490 | 490 | 0.54 x 4P | 0.65 x 4P | 4.6 | 5.6 | Ø5.0x1 | 38 | 240 | 196 | 157 | 165 | 410 | |
SCO-S(D)500
|
500
|
0.54 x 4P | 0.65 x 4P | 4.6 | 5.6 | Ø5.0x1 | 38 | 240 | 196 | 157 | 165 | 410 | |
0.92 x 4P | 1.1 x 4P | 7.0 | 8.4 | Ø5.0x1 | 38 | 257 | 196 | 157 | 165 | 410 | |||
B
|
SCO-S(D)1000 | 1000 | 1.25 x 4P | 1.5 x 4P | 5.8 | 7.0 | Ø7.1x1 | 60 | 295 | 245 | 139 | 210 | 440 |
SCO-S(D)1800D | 1800 | 1.25 x 4P | 1.5 x 4P | 2.9 | 3.5 | Ø7.1x2 | 68 | 295 | 245 | 106 | 245 | 552 | |
SCO-S(D)2000D | 2000 | 1.25 x 4P | 1.5 x 4P | 2.9 | 3.5 | Ø7.1x2 | 68 | 295 | 245 | 106 | 245 | 552 |
Table
Frame Model
|
Capacity
(kg) |
Hoisting Motor [single] | Traversing Motor |
Load
Chain (mm x Falls) |
Net
Weight (kg) |
I-Beam
Width (mm) |
Min
Radius For Curve (mm) |
Dimension | |||||||||||
Power (kw) | Speed (m/min) | Power(kw) x Pole | Speed (m/min) | Single | |||||||||||||||
50Hz | 60Hz | 50Hz | 60Hz | 50Hz | 60Hz | 50Hz | 60Hz | A | B | C | D | E | |||||||
A
|
SCT-S(D)250
|
250
|
0.42 x 4P | 0.5 x 4P | 4.6 | 5.6 | 0.33 x 4P | 0.4 x 4P | 16.7 | 20.0 | Ø5.0x1 | 62 | 75~125 | 1200 | 335 | 238 | 130 | 193 | 444 |
0.42 x 4P | 0.5 x 4P | 7.0 | 8.4 | 0.33 x 4P | 0.4 x 4P | 16.7 | 20.0 | Ø5.0x1 | 62 | 75~125 | 1200 | 335 | 238 | 130 | 193 | 444 | |||
SCT-S(D)490 | 490 | 0.54 x 4P | 0.65 x 4P | 4.6 | 5.6 | 0.33 x 4P | 0.4 x 4P | 16.7 | 20.0 | Ø5.0x1 | 64 | 75~125 | 1200 | 335 | 238 | 130 | 193 | 444 | |
SCT-S(D)500
|
500
|
0.54 x 4P | 0.65 x 4P | 4.6 | 5.6 | 0.33 x 4P | 0.4 x 4P | 16.7 | 20.0 | Ø5.0x1 | 64 | 75~125 | 1200 | 335 | 238 | 130 | 193 | 444 | |
0.92 x 4P | 1.1 x 4P | 7.0 | 8.4 | 0.33 x 4P | 0.4 x 4P | 16.7 | 20.0 | Ø5.0x1 | 64 | 75~125 | 1200 | 335 | 238 | 130 | 193 | 452 | |||
B
|
SCT-S(D)1000 | 1000 | 1.25 x 4P | 1.5 x 4P | 5.8 | 7.0 | 0.33 x 4P | 0.4 x 4P | 16.7 | 20.0 | Ø7.1x1 | 82 | 75~125 | 1200 | 295 | 335 | 139 | 212 | 440 |
SCT-S(D)1800D | 1800 | 1.25 x 4P | 1.5 x 4P | 2.9 | 3.5 | 0.33 x 4P | 0.4 x 4P | 15.8 | 19.0 | Ø7.1x2 | 102 | 100~150 | 1500 | 296 | 365 | 140 | 245 | 530 | |
SCT-S(D)2000D | 2000 | 1.25 x 4P | 1.5 x 4P | 2.9 | 3.5 | 0.33 x 4P | 0.4 x 4P | 15.8 | 19.0 | Ø7.1x2 | 102 | 100~150 | 1500 | 297 | 365 | 140 | 245 | 530 |
