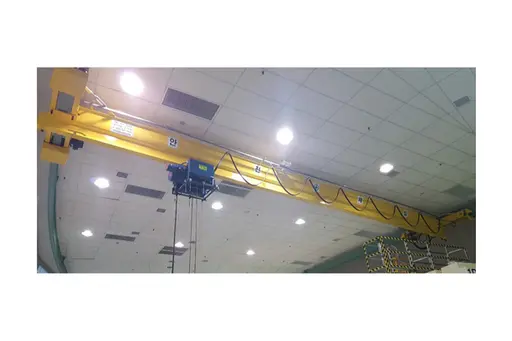

Suspension Crane
Table
Model
no. |
Capacity
(ton) |
Ma. Span
(m) |
Lift L
(m) |
Speed (m/min) / Motor (kw) | Approx. Dimensions (mm) |
Travelling wheel
(mmØ) |
Runway Rail
(kg/m) |
|||||
Hoisting | Traversing | Travelling | H | R | A | B | ||||||
MHS-00
|
0.5
|
7.5 |
6 or 12
|
6/0.55
or 12/1.1 |
16/0.2
or 24/0.4 |
22/0.75
or 15/0.5 |
705
|
1650 | 1250 |
280
|
125
|
I-BEAM
200x100x7t 250x125x7.5t 300x150x10t |
9 | 1900 | 1500 | ||||||||||
12 | 2400 | 2000 | ||||||||||
15 | 2900 | 2500 | ||||||||||
18 | 3400 | 3000 | ||||||||||
21 | 3900 | 3500 | ||||||||||
MHS-01
|
1
|
7.5 |
6 or 12
|
6/1.1
or 12/2.2 |
16/0.2
or 24/0.4 |
22/0.75
or 15/0.5 |
815
|
1650 | 1250 |
280
|
125
|
I-BEAM
200x100x7t 250x125x7.5t 300x150x10t |
9 | 1900 | 1500 | ||||||||||
12 | 2400 | 2000 | ||||||||||
15 | 2900 | 2500 | ||||||||||
18 | 3400 | 3000 | ||||||||||
21 | 3900 | 3500 | ||||||||||
MHS-02
|
2
|
7.5 |
6 or 12
|
5/1.8
or 10/3.7 |
16/0.5
or 24/0.75 |
22/0.75
or 15/0.5 |
980
|
1650 | 1250 |
280
|
125
|
I-BEAM
200x100x7t 250x125x7.5t 300x150x10t |
9 | 1900 | 1500 | ||||||||||
12 | 2400 | 2000 | ||||||||||
15 | 2900 | 2500 | ||||||||||
18 | 3400 | 3000 | ||||||||||
MHS-03
|
3
|
7.5 |
6 or 12
|
4.5/2.5
or 9/5.5 |
16/0.5
or 24/0.75 |
22/0.75
or 15/0.5 |
1115
|
1650 | 1250 |
280
|
125
|
I-BEAM
200x100x7t 250x125x7.5t 300x150x10t |
9 | 1900 | 1500 | ||||||||||
12 | 2400 | 2000 | ||||||||||
MHS-05
|
5
|
7.5 |
6 or 12
|
4.2/4.2 or
5.6/5.6 |
16/0.5 or
24/0.75 |
22/0.75 or
15/0.5 |
1325
|
2000
|
1500
|
350
|
160
|
|
9 |
