Room Valve
Model Name
STV 2FCU-CL/RN
Series
2 Way Valve
Data
Spec 3 way valve STV 2FCU-CL/RN
Manufacturer information
provider logo
Shineui Entec

Explosion switch, Pressure sensor, Flow sensor, Wind pressure switch, Flow switch, Reducing valve, Three way valve and more

Problem with product info?
Update request
Manufacturer
Shineui Entec
Brand
-
SKU
39032
Product Name
Room Valve
Model Name
STV 2FCU-CL/RN
Size
-
Weight
-
Product Details

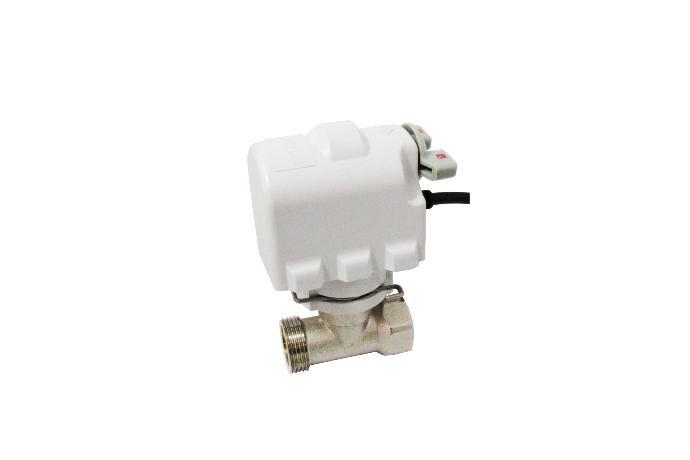

Model Room valve (STV 2FCU-CL/RN)
Use heating control in room or building,
Features

1. It's able to seperate or assemble an actuator and valve set easily.

2. it's possible to check whether it's close or open.

3. It's possible to control manually when it happens problem.

4. excellent durability


- Medium fluid : water(0~85 degree)
- Motorized valve
- Both function(auto & manual)
- Rating : 3W,  220~240VAC
- Suitable differential pressure : 2.0 kgf/㎠(Max)
- Suitable pressure : 0.2~10 (kgf/㎠)
- Response time(on/off) : with in 10 sec
- Connecting : 15A, 20A
- Reverse pressure : 1.0kgf/㎠(Max)
