Main Control Valve
Model Name
-
Series
Transmission Valves, MCV, Amplifier
Data
Main Control Valve
Manufacturer information
provider logo
Shinjin Precision

Power steering unit for forklift and tractor manufacturer, Gear pump, Brake valve, Transmission valve

Problem with product info?
Update request
Manufacturer
Shinjin Precision
Brand
-
SKU
37504
Product Name
Main Control Valve
Model Name
-
Size
-
Weight
-
Product Details

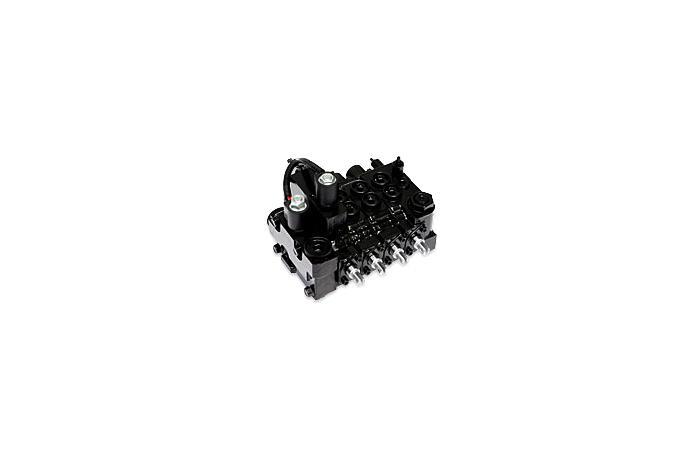

Shinjin Precision Main Control Valve

The main control valve for forklift truck is composed of several sections and valves. It controls fork lifting, master tilting, and auxiliary moving functions. The valve mainly functions as a directional control valve, but it also has several pressure and flow control valves, such as relief valve, flow regulator (down control) valve, tilt and lift lock valves. Also, additional safety functioning valves can be attached as in ISO type.


Features

- By incorporating HYDROSTAT function, energy is reduced and heat generation is minimized.
- Tilt lock valve prevent tilting malfunction by acting counter balance valve.
- Flow Regulator control the work’s down speed.
- Lift lock valve increase user’s safety by preventing abnormal free fall of the fork.
- In ISO Type, when driver gets out of the seat or the engine stops during operation, the valve prevent accident by cutting off the flow to the directional control part.


Specifications

Nominal flow rate : 95 /min
Operating Pressure(Max) : 250bar
Relief Valve Setting Pressure Main : 210bar
Auxiliary : 165bar
Back Pressure Peak : 15bar
Max : 10bar
Fluid : Mineral Oil ISO VG 46
Fluid Temperature : -30℃ ~-100℃
Ambient Temperature : -30℃ ~50℃
Shinjin Precision
Power steering unit for forklift and tractor manufacturer, Gear pump, Brake valve, Transmission valve
We, SINJIN PRECISION Co.,Ltd. are the high tech & quality hydraulic component specialized manufacturer in the field of industrial vehicle, construction equipment, agricultural machinary, ship building industry since its foundation in 1993. On the basis of customer satisfaction management, continuous Research & Development and quality improvement, we've been expanding market share not only in domestic but in North America, Europe, Asia remarkably.  As Power Steering Units have quality and cost competitiveness, we supply to the gloval leading company of the Agricultural and heavy industries. Also, other hydraulic major components meet the customer's needs in the world. Cooperating with customers, we are progressing to be a global company with the accumulated technology, know-how, more effort and passion against rapidly changing technology and tough challenges by the competitors. To save the energy and save the earth, going green and eco-friendliness is a must. We have started developing high efficiency products and reducing the energy by our Research & Development. Before long, everybody will agree with this, "No one will be able to meet the customer's requirements if SINJIN cannot."
