Facing Machine
Model Name
SK-BV 400/600/800
Series
Process Facilities
Data
-
Manufacturer information
provider logo
SHINKWANG AUTO

Spool manufacturer, High frequency bender, Pipe bender, Rotator, Pipe coaster, Facing machine and more

Problem with product info?
Update request
Manufacturer
SHINKWANG AUTO
Brand
-
SKU
12924
Product Name
Facing Machine
Model Name
SK-BV 400/600/800
Size
-
Weight
-
Product Details

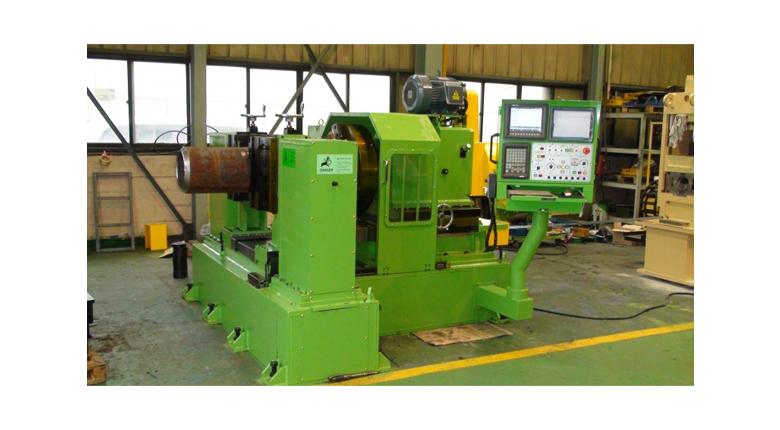

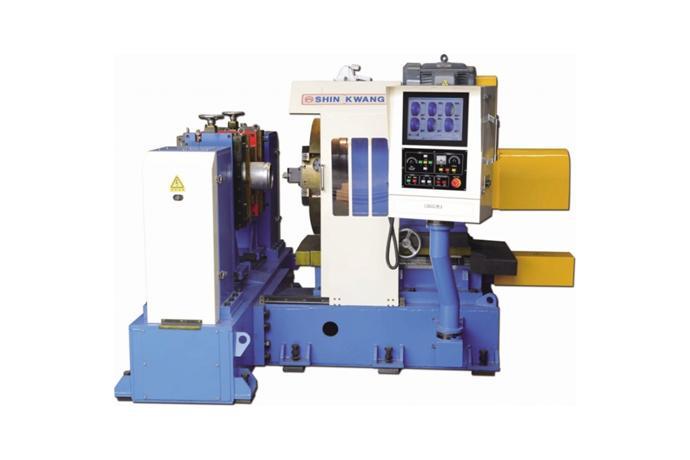

SHINKWANG AUTO Facing Machine SK-BV 400/600/800

Specifications

MODEL SK-BV400

SK-BV600(800)

WORKABLE PIPE DIA ø75 ~ 400mm(3"~16") ø150 ~ 600mm(6"~24")
PLATE FACE DIAMETER ø420mm ø600mm(800)
BITE HOLDER FOR BEVELING/FACING 3EA 3EA
SPINDLE RPM 40~200RPM 40~200RPM
SPINDLE MOTOR CAPACITY 3.7KW 5.4KW
MANUAL FEED 4mm/rev 4mm/rev
VISE CLAMPING RANGE ø75~410mm(3"~16") ø150 ~ 600mm(6"~24")
CENTERING ADJUST BY MANUAL

±5mm, 2mm/rev

±5mm, 2mm/rev

SIZE LENGTH 1600mm 2500mm
WIDTH 1250mm 2400mm
HEIGHT 1500mm 2050mm
CENTERING HEIGHT 1500mm 1250mm
NET WEIGHT 5000kg 7000kg
SHINKWANG AUTO
Spool manufacturer, High frequency bender, Pipe bender, Rotator, Pipe coaster, Facing machine and more
Our company, Shinkwang Automation, is a company that makes devices for welding and shape manufacturing of pipes and pressure vessels that are needed for shipbuilding SPOOL, construction and chemical plants and is contributing to productivity and quality improvement by satisfying customers with the best quality and the best time limit and making strong and stable devices that are used in the field since its foundation in 1991 until now. We promise that from now on our company will make efforts to repeatedly advance with quality improvement and constant researches.
