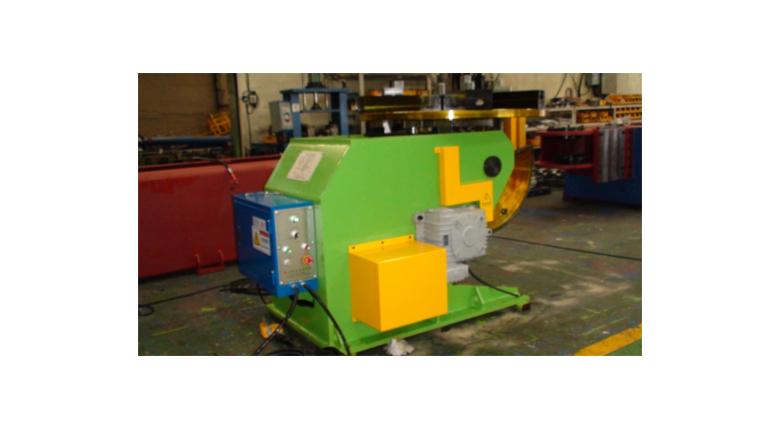

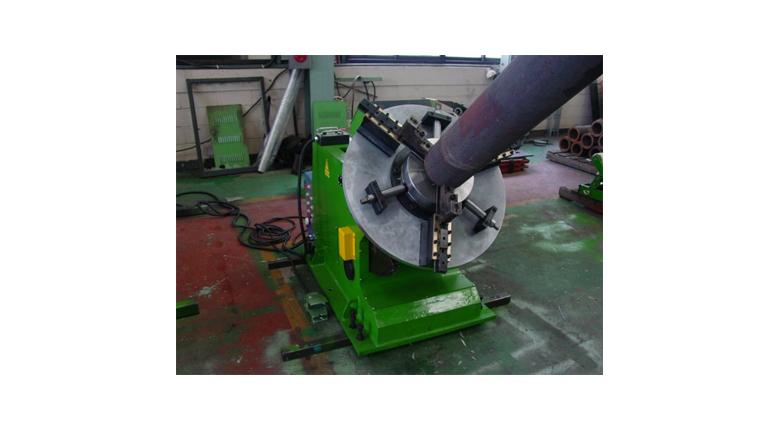

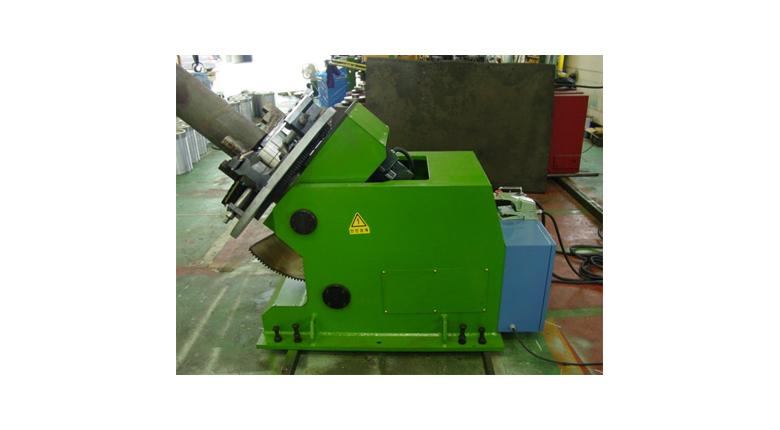

Positioner
Model Name
SK-POS 600/1000/1200
Series
Welding Aid Facilities
Data
-
Manufacturer information
provider logo
SHINKWANG AUTO

Spool manufacturer, High frequency bender, Pipe bender, Rotator, Pipe coaster, Facing machine and more

Problem with product info?
Update request
Manufacturer
SHINKWANG AUTO
Brand
-
SKU
12932
Product Name
Positioner
Model Name
SK-POS 600/1000/1200
Size
-
Weight
-
Product Details

SPECIFICATION

MODEL

SK-POS 600

SK-POS 1000

SK-POS 1200

WELDING CAPACITY

125-600A

125-600A

300-1200A

CAPACITY

HOLIZONTAL

600kg

1000kg

2000kg

VERTICAL

500kg

700kg

1200kg

CLAMPING METHOD

MANUAL BY HANDLE

CHUCK

TILTING

METHOD

GEARED MOTOR & WORM REDUCER

ANGLE

MIN. 0° ~ MAX. 135°

SPEED

MAX. 5° / sec

CONTROL

MANUAL

ROTATION
(WELDING)

METHOD

GEARED MOTOR & WORM REDUCER

ANGLE

±360°

SPEED

MAX. 1.12RPM

1.8RPM

SPEED CONTROL

MANUAL BY VOLUME

CONTROL

FOOT & TOGGLE S/W

MOTOR

TILTING

1.5kw

2.2Kw

ROTATION

0.75kw

MACHINE

LENGTH

1,320mm

1,450mm

1,780mm

HEIGHT

1,220mm

1,350mm

1,446.5mm

WIDTH

922mm

1,200mm

1,195mm

WEIGHT

1,000kg

1,500kg

2,500kg

SHINKWANG AUTO
Spool manufacturer, High frequency bender, Pipe bender, Rotator, Pipe coaster, Facing machine and more
Our company, Shinkwang Automation, is a company that makes devices for welding and shape manufacturing of pipes and pressure vessels that are needed for shipbuilding SPOOL, construction and chemical plants and is contributing to productivity and quality improvement by satisfying customers with the best quality and the best time limit and making strong and stable devices that are used in the field since its foundation in 1991 until now. We promise that from now on our company will make efforts to repeatedly advance with quality improvement and constant researches.
