Positioner
Model Name
SK-POS 600/1100(ST)
Series
Welding Aid Facilities
Data
-
Manufacturer information
provider logo
SHINKWANG AUTOSpool manufacturer, High frequency bender, Pipe bender, Rotator, Pipe coaster, Facing machine and more
Problem with product info?
Update request
Manufacturer
SHINKWANG AUTO
Brand
-
SKU
12933
Product Name
Positioner
Model Name
SK-POS 600/1100(ST)
Size
-
Weight
-
Product Details

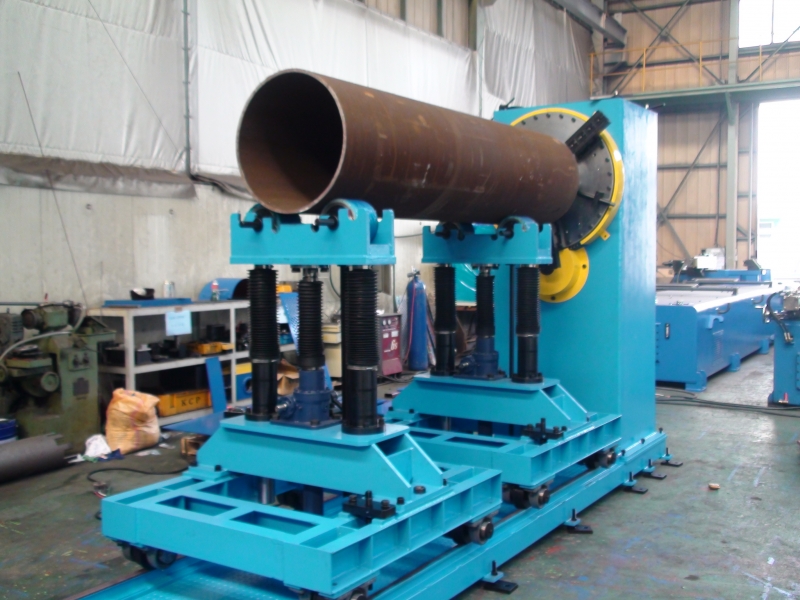

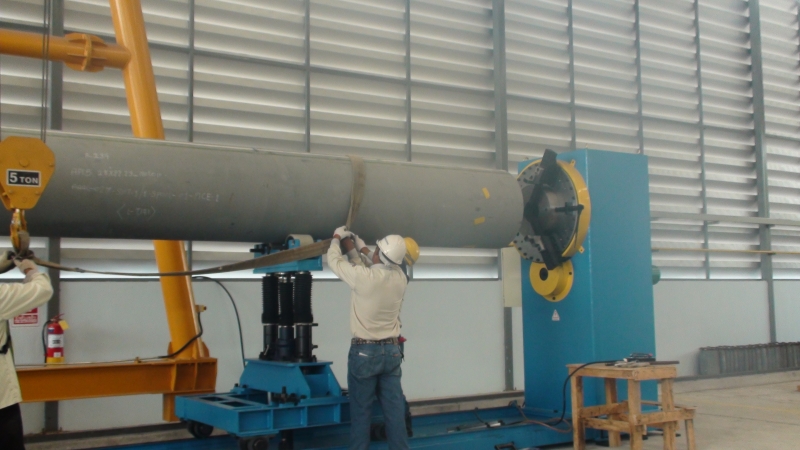

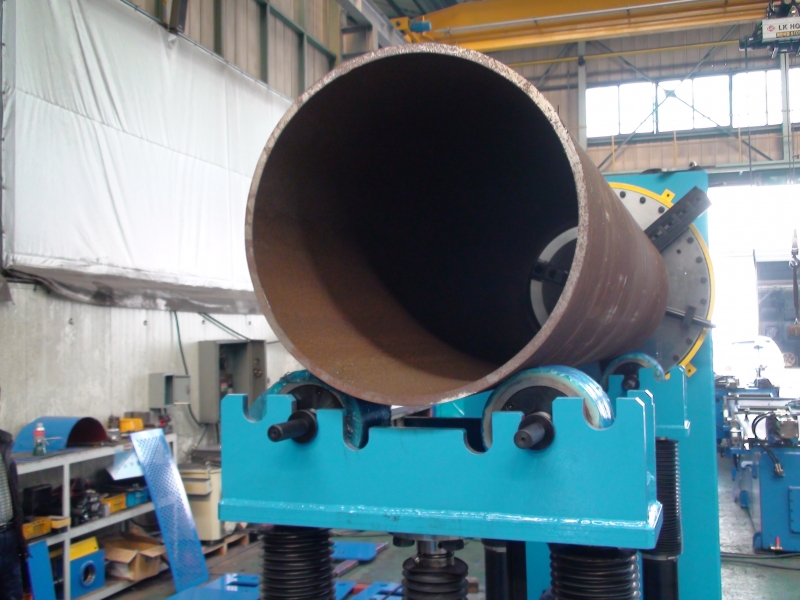

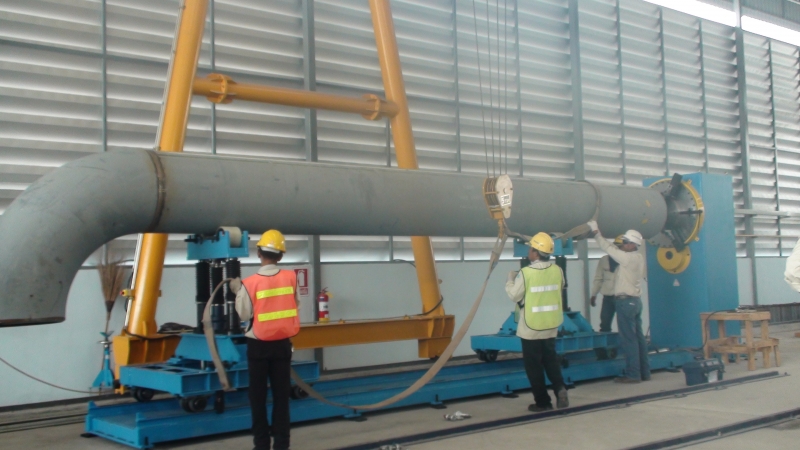

SHINKWANG AUTO Positioner SK-POS 600/1100(ST)


SHINKWANG AUTO Positioner SK-POS 600/1100(ST) 1
  · TILTING_TYPE :  SK-POS-600/1000/1200

  · HORIZONTAL_TYPE :  SK-POS-600/1100 (ST)

SHINKWANG AUTO Positioner SK-POS 600/1100(ST) 2


  제  목 : SK-POS-600/1100 (ST)



SHINKWANG AUTO Positioner SK-POS 600/1100(ST) 3   SHINKWANG AUTO Positioner SK-POS 600/1100(ST) 4
SHINKWANG AUTO Positioner SK-POS 600/1100(ST) 5   SHINKWANG AUTO Positioner SK-POS 600/1100(ST) 6
SHINKWANG AUTO Positioner SK-POS 600/1100(ST) 7   SHINKWANG AUTO Positioner SK-POS 600/1100(ST) 8


SPECIFICATION

MODEL

SK-POS(ST) 1100

SK-POS(ST) 600

PIPE SIZE

OUT
DIAMTETER

65A ~ 1100A(3′~44′)

65A ~ 600A(3′~24′)

WALL
THICKNESS
40mm
LENGTH 1000~10000mm
MAX WEIGHT 10000(KG) 5000(KG)
ROTATING
ASS'Y
METHOD AC MOTOR + CYCLO REDUCER + RING GEAR + PINION
CENTER
HEIGHT
FL 2100mm FL 1650mm
SPEED 1750×1/187×24/120
=1.87RPM
1750×1/231×22/90
=1.85RPM
AC MOTOR 7.5KW×1750×380V
(B-TYPE BRAKE)
3.7KW×1750×380V
(B-TYPE BRAKE)
CYCLO
REDUCER
7.5KW × 1/187 3.7KW × 1/231
CHUCKING
ASS'Y
METHOD AIR IMPACT + SCREW HANDLE
STROKE

550

290
SUPPORT
ASS'Y
SUPPORT
ROLL
URETHAN COATING ROLL + SHARP ROLL
UP-DOWN
METHOD

AIR IMPACT + JACK SCREW + GUIDE BAR

JACK
SCREW

SJ73-600

SJ66S-300
STROKE 600 300
ELECTRIC
POWER
MAIN
POWER
380V 380V
CONTROL
POWER

220V

220V
UTILITY AIR
PRESSURE
5KG/㎠ 5KG/㎠
SHINKWANG AUTOSpool manufacturer, High frequency bender, Pipe bender, Rotator, Pipe coaster, Facing machine and more
Our company, Shinkwang Automation, is a company that makes devices for welding and shape manufacturing of pipes and pressure vessels that are needed for shipbuilding SPOOL, construction and chemical plants and is contributing to productivity and quality improvement by satisfying customers with the best quality and the best time limit and making strong and stable devices that are used in the field since its foundation in 1991 until now. We promise that from now on our company will make efforts to repeatedly advance with quality improvement and constant researches.
