Manufacturer
SHINKWANG AUTO
Brand
-
SKU
27059
Product Name

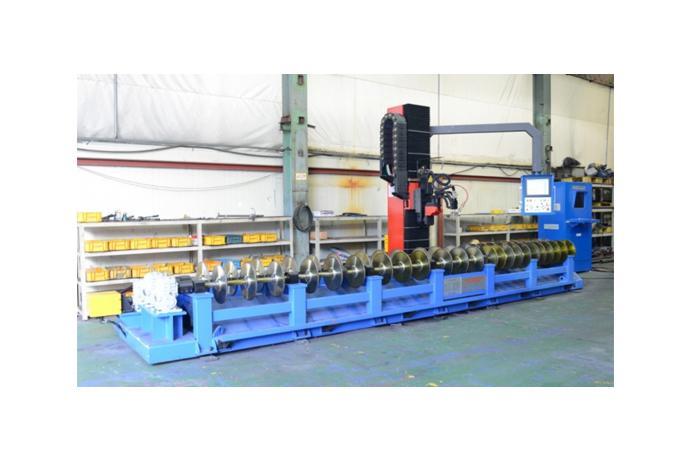

Pipe Coaster (5축 Turning Roll Type)
Model Name
SK-COS5-800A
Size
-
Weight
-
Product Details
Specifications
| MODEL | SK-COS5- 600/800/1000 | |
| MIN. PIPE DIAMETER | 65A | |
| MAX. PIPE DIAMETER | 600A / 800A / 1000A | |
| MAX. PIPE WEIGHT | MAX. 2000KG | |
| EFFECTIVE PIPE LENGTH | MAX. 6000mm | |
| CUTTING PROCESS | OXYGEN & PLASMA | |
| AIR PRESSURE | 5KG/㎠ | |
| TABLE HEIGHT | F.L + 770mm | |
| CUTTING THICKNESS |
STEEL | MAX. 20mm |
| SUS | MAX. 10mm | |
| ALUMINUM | MAX. 7mm | |

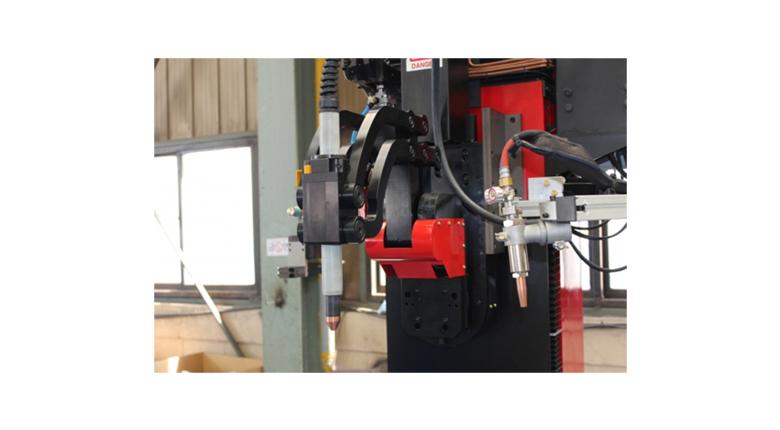

| TORCH BEVEL ANGLE |
ANGLE |
-45° ~ +45° (65) |
| ANGLE CONTROL | AUTO & MANUAL | |
| DRIVING | AC SERVO MOTOR | |

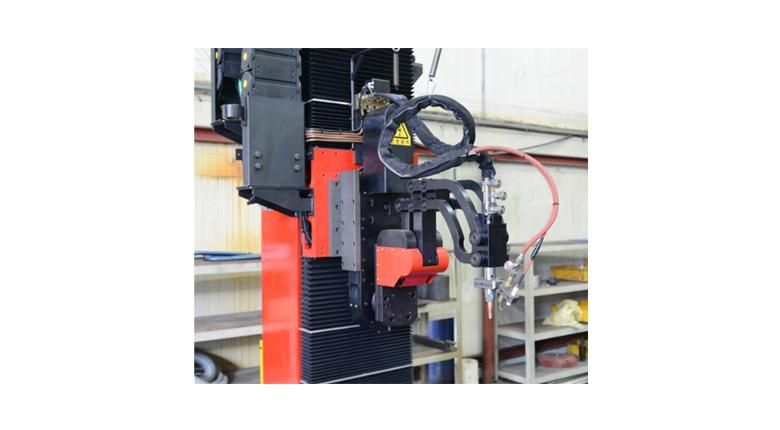

| TORCH UP-DOWN |
STROKE | MAX. 1095mm |
| SPEED | MAX. 50mm | |
| DRIVING | AC SERVO MOTOR | |
| CARRIAGE | TRAVEL STROKE | MAX. 6300mm |
| TRAVEL SPEED | MAX. 6M/min | |
| DRIVING | AC SERVO MOTOR | |

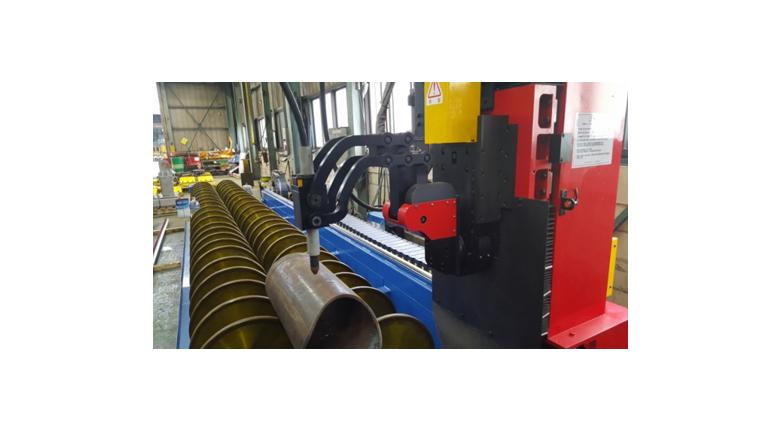

| TURNING ROLLER |
ROLLER DIA | Ø375 |
| DRIVING | AC SERVO MOTOR | |
| HI-LOW SENSOR | LASER SENSOR / DISTANCE : 100~140(mm) ACCURACY : ±0.5 |
|
| POWER SOURCE |
220V × Ø3 × 60Hz |
|
| TOTAL ELECTRIC POWER | 4KW(EXCEPT PLASMA) | |
| MACHINE WIDTH | 1702mm | |
| MACHINE HEIGHT | 2050mm | |
| MACHINE LENGTH | 7514mm | |
| MACHINE WEIGHT | 4300kg | |
SAMPLE 가공
