product Image

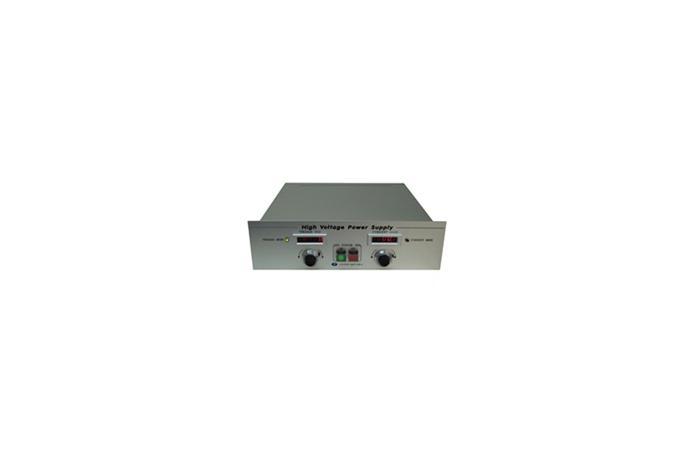

High Power (고압 직류 전원공급장치)
Model Name
SHP-5000
Data
-
Manufacturer information
provider logo
Shinwoo Power Technology

Uninterruptible power supply, Automatic voltage regulator, Frequency converter and Power supply device manufacturer

Problem with product info?
Update request
Manufacturer
Shinwoo Power Technology
Brand
-
SKU
38417
Product Name
High Power (고압 직류 전원공급장치)
Model Name
SHP-5000
Size
-
Weight
-
Product Details

신우전원기술(주) High Power (고압 직류 전원공급장치) SHP-5000

품명 고압직류전원 공급장치
모델명 S H P - 5000
개요 고압직류전원 공급 장치란 일반적인 교류 전원을 입력으로 하여 정류 반도체 소자를 이용하여 고압의
직류로 변환한 뒤 부하 측에 공급하는 장치입니다.
적용 진공도금장비,세라믹 폴링,정전기 설비,CRT제조, 정전기설비등
특,장점

1. 고전압을 전원으로 하는 장비 연구 개발 전원용 적합

2. High Stability의 Linear DC Power Supply입니다.

3. 출력전류를 임의로 제한(Limit)값 재설정 가능

4. 정전압, 정전류 방식

5. 과부하 보호회로 내장.



항목

성능 및 특성

 일반적 특성

 냉각방식

 강제 풍냉식

 사용정격

 100% 연속사용





 입력

 상수

 단상

 정격전압

 100V/220V

 전압 변동범위

 ±10%

 주파수

 50/60Hz ±5%

 출력

 방식

 고주파 공진방식

 정격전압

 0.5kV ~ 5kV

 정격용량

 주문자 선정(전압X전류)

 리플

 50mV

 외부조정

 전압, 전류

 보호기능 동작

 과전압시, 과전류시

 전압 안정도

 0.5% 이하
