SCR-P22H (Multifunctional Pressure Reducing Valve with Built-in Bypass)

SCR-P22H combines multiple functions of pressure reducing valve, strainer, bypass valve, inlet & outlet shut-off valves into a single product to dramatically reduce the number of system components traditionally required when installing pressure reducing valves.

By replacing an entire piping assembly with a compact, lightweight product, benefits such as reduced labor cost and significant decrease in installation space can be achieved.

Different configurations are possible based on the site's requirement.

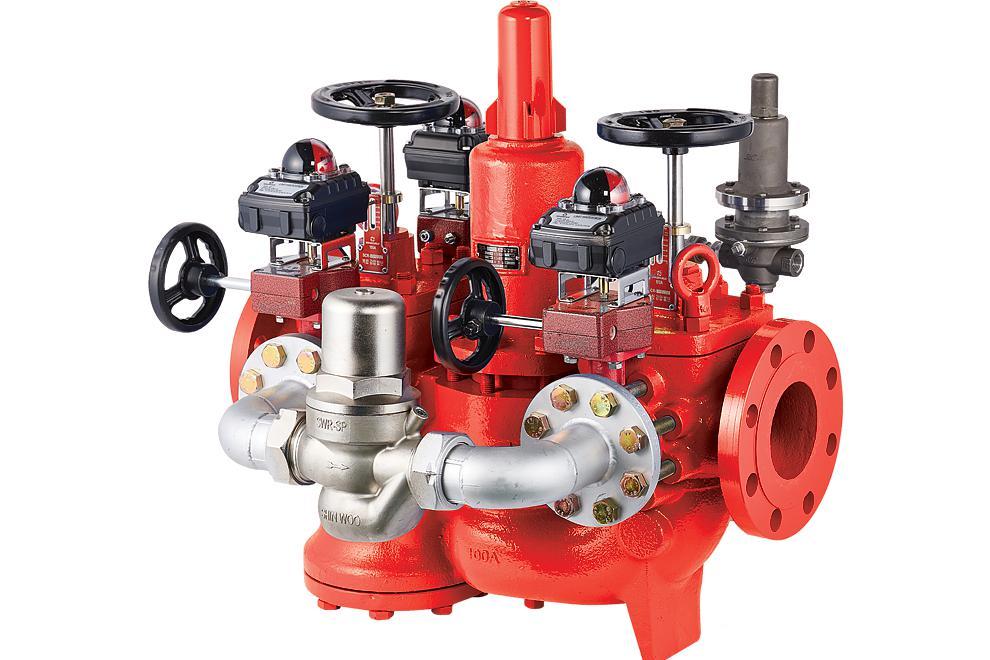

SCR-R22H (Multifunctional Pressure Reducing Valve Preventing Pressure Equalization)

SCR-R22H combines the functionality of relief valve in addition to those of pressure reducing valve, strainer, bypass valves, and inlet & outlet shut-off valves.

This results in significant savings in materials, labor and installation costs, space, and weight.

This direct acting, balanced trim valve is reliable and can help increase flow capacity, and its streamlined design also helps reduce pressure loss and noise.

SCR-R22H effectively relieves excessive pressure at the outlet side without the need to install a separate relief valve.

Different configurations are possible based on the need of each site.
