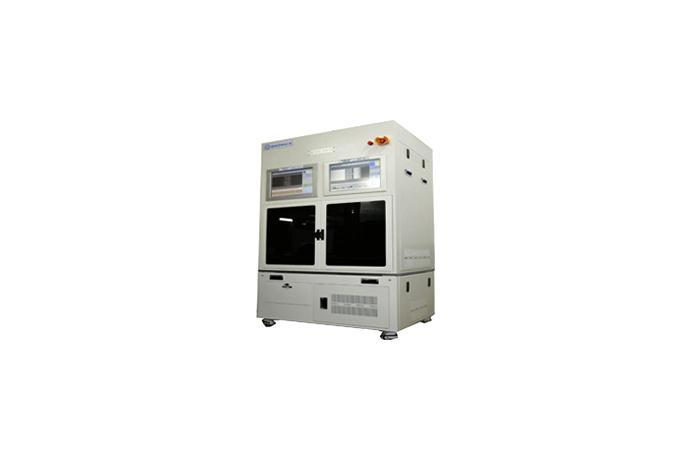

Roll to Roll Inspection System
Model Name
-
Series
F/A & Vision Solution
Data
-
Manufacturer information
provider logo
SHONICS

Manufacturer of assembling and inspection machines used for manufacturing TV, Monitor, Mobile Devices

Problem with product info?
Update request
Manufacturer
SHONICS
Brand
-
SKU
38091
Product Name
Roll to Roll Inspection System
Model Name
-
Size
-
Weight
-
Product Details

System Specification

Equipment Name

Roll to Roll Inspection System

Use For

Diffuse Sheet or Shading Sheet

Basic Inspection Items

1) Black & White Point ( size ≤ 0.1 mm )
2) Scratch ( Length ≤ 1 mm )
3) Foreign Material ( size ≤ 0.1mm )
4) Pollution ( size ≤ 0.1mm )

Inspection Speed

150mm / sec

Equipment Control

Industrial PC based on Windows



※ This system can be customized for the customer's needs.



Diffuser & Shading Sheet which are used in BLU Assembly Process will bring enormous losses when there are defects (such as Scratch,press,foreign materias, pollution etc.)on them.
Currently, many operators have to keep observing the Roll till it finished. And because of the tiredness and attitude problems of operators, manual inspection efficiency is reduced.



This Roll to Roll Inspection System is developed with the following Vision Technology to inspect the entire materials.



Shonics Roll to Roll Inspection System

 Real-time defect detection (about 150mm/sec)

ㆍ Exact size measuring algorithm

ㆍ Based on defect characteristics, developed the self-produced special lighting is used

ㆍ Improve the process with inspection data base



Because this system can reduce the possibility of defect BLU due to bad components in advance, customers can achieve quality stability, higher productivity and effective operation.

SHONICS
Manufacturer of assembling and inspection machines used for manufacturing TV, Monitor, Mobile Devices
Founded in 1991, Shonics is doing business in image processing industry, developing advanced vision technology and applying it to the inspection and assembly machines for various industry. In recent years, for the display industry advancing day after day, Shonics is supplying mainly assembling and inspection machines used for manufacturing TV,Monitor, Mobile Devices to  major display companies in Korea and abroad. The inspection and assembly integrated machines, which are developed in 2013 by Shonics cutting edge vision and alignment technology, are used for producing BLU, Cell, Module in LCD and OLED Display production processes. Since 2007, Shonics has supplied the auto inspection machines to major LCD company in Korea, From 2010 our products are increasingly delivered to abroad display companies in China and Thai and are operating successfully in mass production stage. Thanks to our customers' continued attention and support, Shonics awarded '10 million Dollar Tower of Export ' from Korean Government in 2014. Shonics will continue pursuing the way to enable our customers improve the productivity and enhance the quality of their products. We and Shonics will always be faithful to and be loved by customers with our effort and technology.
