System Specification
Equipment Name |
Cover Glass Auto Inspection Machine |
Use For |
5” ~ 10” |
Inspection Items |
Foreign Material, Scratch, Chipping,Bubble, Dent, Bending, Press, Mura etc. |
Line Tact Time |
3sec/1piece |
Main Power |
AC 220V 60HZ 3-phase |
Equipment Control |
Industrial PC based on Windows |
Main Air Pressure |
5 ~ 6 kgf/cm |
Dimensions |
2046(L) x 2125(W) x 1255(H) (mm) |
Weight |
About 1250Kg |
※ This system can be customized for the customer's needs.

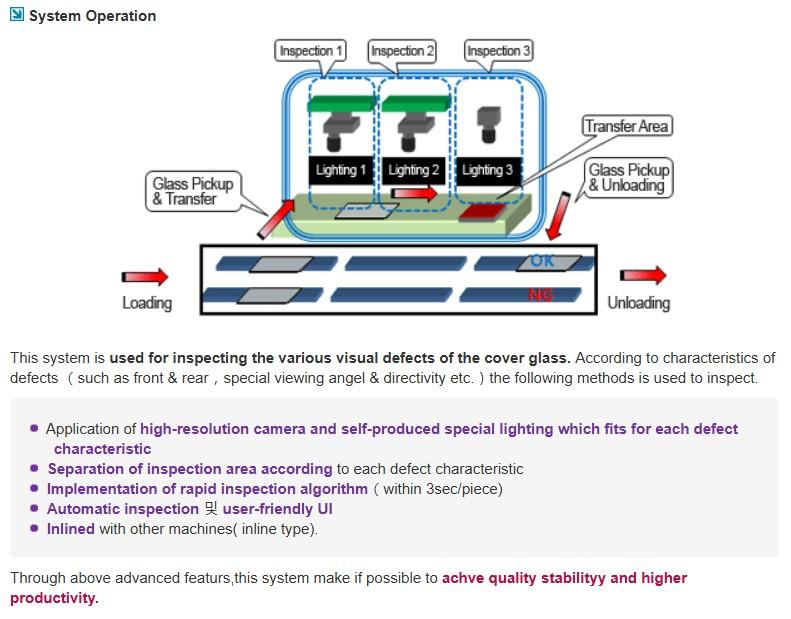

System Operation
This system is used for inspecting the various visual defects of the cover glass. According to characteristics of defects (such as front & rear,special viewing angel & directivity etc.)the following methods is used to inspect.
ㆍ Application of high-resolution camera and self-produced special lighting which fits for each defect characteristic
ㆍ Separation of inspection area according to each defect characteristic
ㆍ Implementation of rapid inspection algorithm(within 3sec/piece)
ㆍ Automatic inspection 및 user-friendly UI
ㆍ Inlined with other machines( inline type).
Through above advanced featurs,this system make if possible to achve quality stabilityy and higher productivity.
