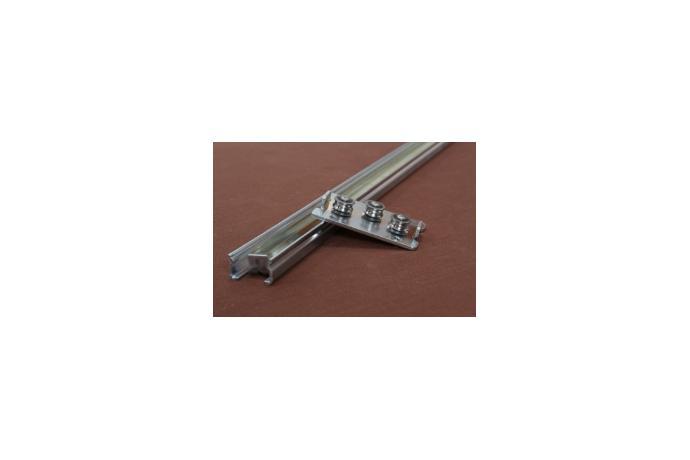

product Image

TOP

Speed Guide (Tab)
Model Name
SSR253A
Series
Speed Guide
Data
SSR253A
Manufacturer information
provider logo
SLIDEKOREA

Manufacturer of Soft guide, Speed guide, Linear roller guide, Linear motion system

Problem with product info?
Update request
Manufacturer
SLIDEKOREA
Brand
-
SKU
3713
Product Name
Speed Guide (Tab)
Model Name
SSR253A
Size
-
Weight
-
Product Details

SSR253A

* 재질:SCP(냉간압연강판)
* 표면처리:전기아연도금
* 고정나사:M4바인더나사, 트러스작은나사
* 윤활유:슬라이드용 구리스
* 인너플레이트 분리가능

(주)슬라이드코리아 스피드가이드 (탭) SSR253A

MODEL

SLIDE
LENGTH

TRAVEL
LENGTH

주요치수

수직하중(Pa)
kg/EA

수평하중(Pb)
kg/EA

수평하중(Pc)
kg/EA

n

G

SSR253A

220

136

3

20

10

3

280

196

4

20

10

3

3

340

256

5

20

10

460

376

7

20

10

3

640

556

10

20

10

3

820

736

13

20

10

3

1000

916

16

20

10

3

1240

1156

20

20

10

1480

1396

24

20

10

1600

1516

26

20

10

1840

1756

30

20

10

3

2080

1996

34

20

10

2200

2116

36

20

10

3
