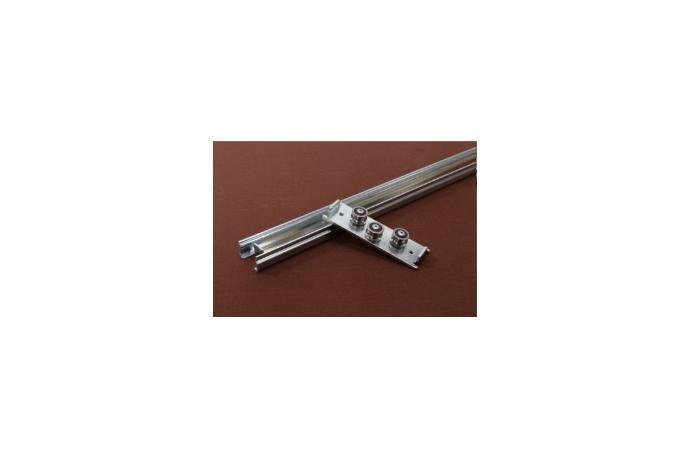

product Image

TOP

Speed Guide (Tab)
Model Name
SSR253C
Series
Speed Guide
Data
SSR253C
Manufacturer information
provider logo
SLIDEKOREAManufacturer of Soft guide, Speed guide, Linear roller guide, Linear motion system
Problem with product info?
Update request
Manufacturer
SLIDEKOREA
Brand
-
SKU
3715
Product Name
Speed Guide (Tab)
Model Name
SSR253C
Size
-
Weight
-
Product Details

SSR253C

* 재질:SCP(냉간압연강판)

* 표면처리:전기아연도금

* 고정나사:M4바인더나사, 트러스작은나사

* 윤활유:슬라이드용 구리스

* 인너플레이트 분리가능

(주)슬라이드코리아 스피드가이드 (탭) SSR253C

MODEL

SLIDE
LENGTH

TRAVEL
LENGTH

주요치수

수직하중(Pa)
kg/EA

수평하중(Pb)
kg/EA

수평하중(Pc)
kg/EA

n

G

SSR253C

220

119

3

20

10

280

179

4

20

10

3

340

239

5

20

10

460

359

7

20

10

3

640

539

10

20

10

3

820

719

13

20

10

3

1000

899

16

20

10

3

1240

1139

20

20

10

1480

1379

24

20

10

1600

1499

26

20

10

1840

1739

30

20

10

3

2080

1979

34

20

10

2200

2099

36

20

10

3
