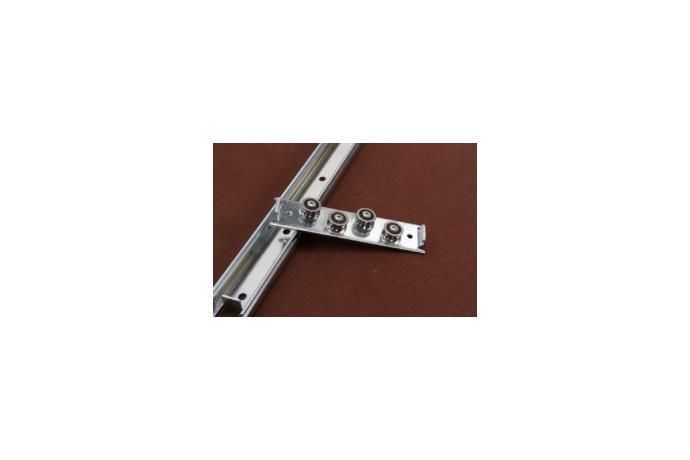

product Image

TOP

Speed Guide (Tab)
Model Name
SSR254C
Series
Speed Guide
Data
SSR254C
Manufacturer information
provider logo
SLIDEKOREA

Manufacturer of Soft guide, Speed guide, Linear roller guide, Linear motion system

Problem with product info?
Update request
Manufacturer
SLIDEKOREA
Brand
-
SKU
3719
Product Name
Speed Guide (Tab)
Model Name
SSR254C
Size
-
Weight
-
Product Details

SSR254C

* 재질:SCP(냉간압연강판)

* 표면처리:전기아연도금

* 고정나사:M4바인더나사, 트러스작은나사

* 윤활유:슬라이드용 구리스

* 인너플레이트 분리가능

(주)슬라이드코리아 스피드가이드 (탭) SSR254C

MODEL

SLIDE
LENGTH

TRAVEL
LENGTH

주요치수

수직하중(Pa)
kg/EA

수평하중(Pb)
kg/EA

수평하중(Pc)
kg/EA

n

G

SSR254C

220

101

3

20

13

280

161

4

20

13

4

340

221

5

20

13

460

341

7

20

13

4

640

521

10

20

13

4

820

701

13

20

13

4

1000

881

16

20

13

4

1240

1121

20

20

13

1480

1361

24

20

13

1600

1481

26

20

13

1840

1721

30

20

13

4

2080

1961

34

20

13

2200

2081

36

20

13

4
