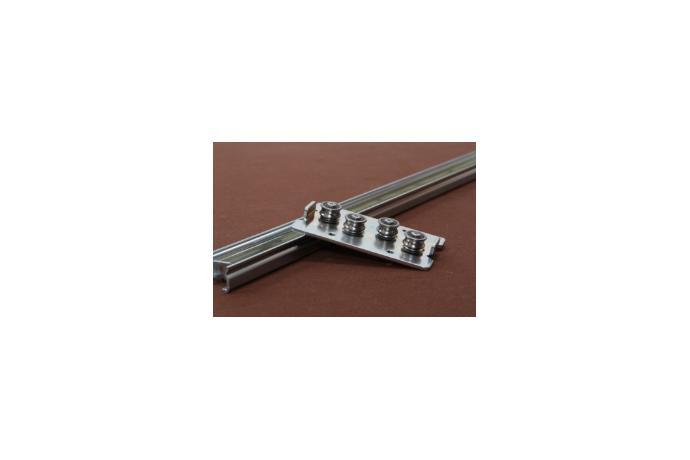

product Image

TOP

Speed Guide (Tab)
Model Name
SSR354A
Series
Speed Guide
Data
SSR354A
Manufacturer information
provider logo
SLIDEKOREA

Manufacturer of Soft guide, Speed guide, Linear roller guide, Linear motion system

Problem with product info?
Update request
Manufacturer
SLIDEKOREA
Brand
-
SKU
3720
Product Name
Speed Guide (Tab)
Model Name
SSR354A
Size
-
Weight
-
Product Details

SSR354A

* 재질:SCP(냉간압연강판)

* 표면처리:전기아연도금

* 고정나사:M5렌지볼트

* 윤활유:슬라이드용 구리스

* 인너플레이트 분리가능

(주)슬라이드코리아 스피드가이드 (탭) SSR354A

MODEL

SLIDE
LENGTH

TRAVEL
LENGTH

주요치수

수직하중(pa)
kg/EA

수평하중A(pb)
kg/EA

수평하중B(pc)
kg/EA

n

G

SSR354A

280

148

3

20

36

10

10

440

308

5

20

36

10

10

600

468

7

20

36

10

10

760

628

9

20

36

10

10

1000

868

12

20

36

10

10

1240

1108

15

20

36

10

10

1480

1348

18

20

36

10

10

1640

1508

20

20

36

10

10

1800

1668

22

20

36

10

10

2040

1908

25

20

36

10

10

2200

2068

27

20

36

10

10

2360

2228

29

20

36

10

10

2520

2388

31

20

36

10

10

2840

2708

35

20

36

10

10

3000

2868

37

20

36

10

10

3480

3348

43

20

36

10

10

3960

3828

49

20

36

10

10
