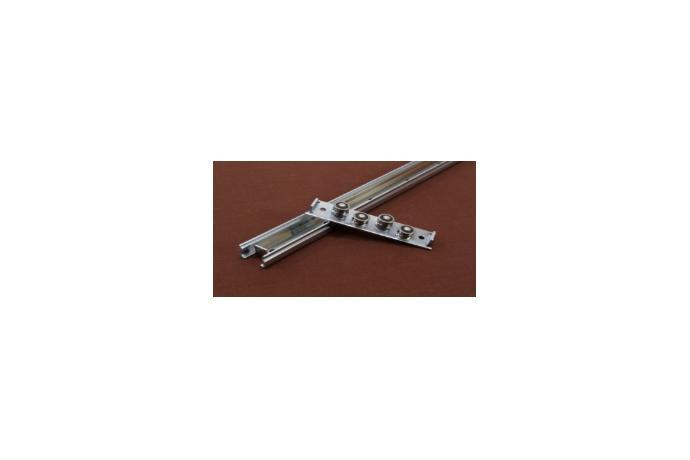

product Image
Speed Guide (Hole)
Model Name
SSR354D
Series
Speed Guide
Data
SSR354D
Manufacturer information
provider logo
SLIDEKOREA

Manufacturer of Soft guide, Speed guide, Linear roller guide, Linear motion system

Problem with product info?
Update request
Manufacturer
SLIDEKOREA
Brand
-
SKU
3723
Product Name
Speed Guide (Hole)
Model Name
SSR354D
Size
-
Weight
-
Product Details

SSR354D

* 재질:SCP(냉간압연강판)

* 표면처리:전기아연도금

* 고정나사:M5렌지볼트

* 윤활유:슬라이드용 구리스

* 인너플레이트 분리가능

(주)슬라이드코리아 스피드가이드 (홀) SSR354D

MODEL

SLIDE
LENGTH

TRAVEL
LENGTH

주요치수

수직하중(pa)
kg/EA

수평하중A(pb)
kg/EA

수평하중B(pc)
kg/EA

n

G

SSR354D

280

127

3

20

36

10

10

440

287

5

20

36

10

10

600

447

7

20

36

10

10

760

607

9

20

36

10

10

1000

847

12

20

36

10

10

1240

1087

15

20

36

10

10

1480

1327

18

20

36

10

10

1640

1487

20

20

36

10

10

1800

1647

22

20

36

10

10

2040

1887

25

20

36

10

10

2200

2047

27

20

36

10

10

2360

2207

29

20

36

10

10

2520

2367

31

20

36

10

10

2840

2687

35

20

36

10

10

3000

2847

37

20

36

10

10

3480

3327

43

20

36

10

10

3960

3807

49

20

36

10

10
