풍력발전기 구조 건전성 모니터링 시스템
Model Name
CR-B3
Series
-
Data
-
Manufacturer information
provider logo
Sm InstrumentsSound camera, Sound scanner, Wind power generator and more
Problem with product info?
Update request
Manufacturer
Sm Instruments
Brand
-
SKU
36961
Product Name
풍력발전기 구조 건전성 모니터링 시스템
Model Name
CR-B3
Size
-
Weight
-
Product Details

풍력발전기 타워, 블레이드 등의 구조물 상태감시시스템(Structural Health Monitoring).
주요 구조물의 응력, 온도 진동 감시를 통한 구조물의 건전성 상시 진단.

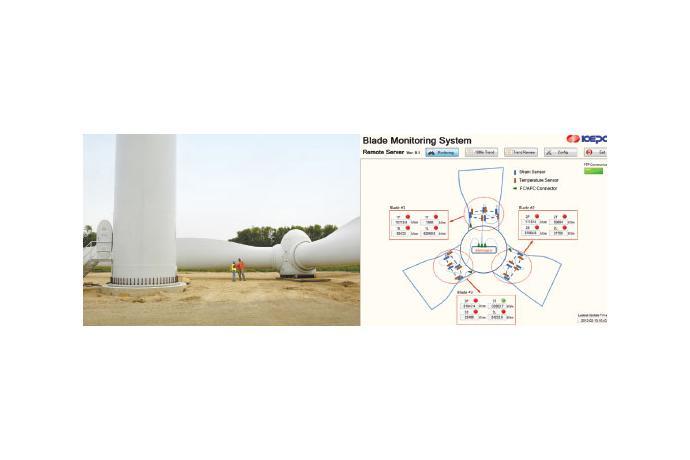

광센서를 이용한 블레이드 건전성 모니터링. FPGA 기반 실시간 임베디드 제어기를 탑재한 시스템.


하드웨어
ㆍ20 CH 가속도 신호 입력
ㆍ20 CH 광센서 FBG 입력
ㆍ4 CH 스트레인 입력
ㆍ16 CH 아날로그 입력
ㆍ8 CH 디지털 신호 입력
ㆍ최대 6.4kS/s 샘플링
ㆍFPGA 기반 실시간 임베디드 제어기
ㆍEthernet 인터페이스


소프트웨어
ㆍ트리거 기반 모니터링, 주기적 모니터링 동시 설정 가능
ㆍ광센서 이용을 위한 인트로게이터 인터페이스
ㆍ풍력발전기 회전 주파수 측정 기능
ㆍ알람 및 데이터 베이스 연동 기능

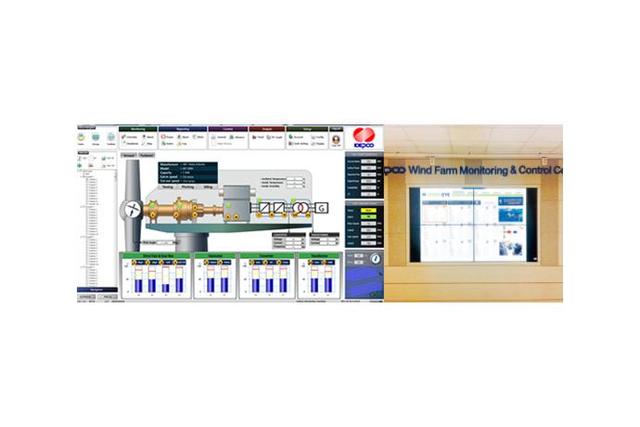

ㆍ육상 및 해상 풍력발전기의 상태 감시 시스템
ㆍ회전체를 포함한 플랜트의 상태 감시 시스템


Analog Input Characteristics
Number of Channels20 CH Dynamic Analog Input
20 CH FBG Sensor
4 CH Strain Gage
16 CH Analog Input
ADC Resolution24-bit
Sampling RateMax 6.4kS/s
Dynamic Range102dB



Digital Input Characteristics
Number of Channels8 Digital Input
Logic levelOff≤5V, On 11 to 30V



I/O Interface
RS2321-port
10/100Base Ethernet2-port



Power Requirements
Supply Power220Vac 60Hz 3A
Battery Backup Time30Minutes
Surge ProtectionBuilt-in (Data and Power)



Physical Dimension & Weight
Size (W x H x D)300 x 400 x 120 mm
Weight9.5kg
