Model Name
KM-2320 Series
Series
Sewing Machine
Data
KM-2320 Series
Manufacturer information
provider logo
SunStarIndustrial sewing machine and thread trimming sewing manufacturer, Sewing machine, Servo motor and more
Problem with product info?
Update request
Manufacturer
SunStar
Brand
-
SKU
56213
Product Name
Bottom Feed
Model Name
KM-2320 Series
Size
-
Weight
-
Product Details

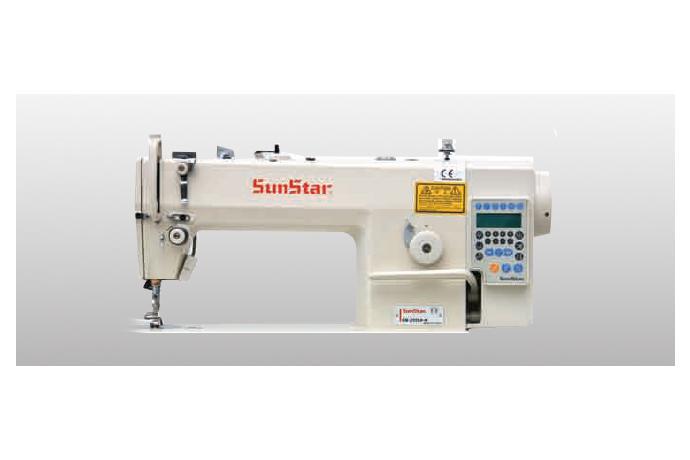

SunStar Bottom Feed KM-2320 Series


Model Application Max. sewing speed [spm] Stitch length [mm] Needle Lubrication Auto thread trimming Motor Lift of the presser foot [mm] Hook
Hand Knee Auto Drive type Position Size
KM/N-2300FA light 3,500 0~4 DBx1 SF (KN) #9 (#9~#11)   Yes Servo motor(Direct)     15 Rotary Vertical
KM/N-2300FG Medium 5,000 0~5 DBx1 #14 (#9~#18)   Yes Servo motor(Direct)     15 Rotary Vertical
KM/N-2300MA light 4,500 0~4 DBx1 SF (KN) #9 (#9~#11) Micro lubrication Yes Servo motor(Direct)     15 Rotary Vertical
KM/N-2300MB Medium heavy 4,500 0~5 DBx1 #21 (#19~#23) Micro lubrication Yes Servo motor(Direct)     15 Rotary Vertical
KM/N-2300MG Medium 4,500 0~5 DBx1 #14 (#9~#18) Micro lubrication Yes Servo motor(Direct)     15 Rotary Vertical
KM/N-2300SA light 4,500 0~4 DBx1 SF (KN) #9 (#9~#11) Hook lubrication Yes Servo motor(Direct)     15 Rotary Vertical
KM/N-2300SG Medium 5,000 0~5 DBx1 #14 (#9~#18) Hook lubrication Yes Servo motor(Direct)     15 Rotary Vertical
KM/N-2310B Medium heavy 4,500 0~5 DBx1 #21 (#19~#23) Auto Yes Servo motor(Direct) 5.5 15 (10) Rotary Vertical
KM/N-2310G Medium 5,000 0~5 DBx1 #14 (#9~#18) Auto Yes Servo motor(Direct) 5.5 15 (10) Rotary Vertical
SunStarIndustrial sewing machine and thread trimming sewing manufacturer, Sewing machine, Servo motor and more
Korea Machine Industry Co., Ltd. was established in Jun. 1974and started producing industrial sewing machines, and developed automatic thread trimming sewing machines in 1988. We started enlarging our overseas businesses by establishing Foshan SunStar Precision Co., Ltd. and extended SunStar Machinery (Shanghai) Co., Ltd. in 2002 in China. Also, we established overseas corporations and branch offices in India, Brazil, Europe and etc. Our sewingmachine was selected as the World Best Product in the field of industrial sewing machine in 2006.  SunStar has been the leader of sewing industry in Korea, and it started to leap as global company as we integrated Korean Machine Industry Co., Korea Special Precision Co. and Korea Electricity Co. into one company under the name of SunStar. Established in Jul. 1990, SunStar Precision Co., Ltd. started researching the multi-heads automatic embroidery machine, and became the first company that succeeded in localizing the embroidery machine. We have established a foothold to grow as the integrated maker by merging with SunStar Precision Co., Ltd., No. 1 embroidery machine  company in the world.  Also, we merged with SunStar Machinery Co., Ltd., the Gold Tower Order of Industrial Service Merit awarded company by accomplishing $100 million export volume, and became the unison of brands in the world as well as in Korea.  Currently, SunStar manufactures and sells the highest quality sewing machine, industrial sewing machine motors and computerized embroidery machine controllers in the sewing industry to the world as world’s leading total maker as well as the representative brand in Korea. SunStar attained its worldwide customers with its leading technology, high quality and reasonable price. SunStar’s products establish comfortable work environment with low noise and vibration. They realize fast, stable sewing speed, and elegant sewing work. Our SunStar embroidery machines are exported to 150 countries in the world with No. 1 share in overseas market as well as within Korea. In addition to the outstanding production capability, our after service is upgraded to 24 hour response service system and is being the main reason why customers are choosing our products. We are gaining more reputation from markets with high performances, high quality professional product configuration. The world’s first large pattern sewing machine enabled revolutionary improvement in productivity. Also, the products provide total solution according to customers’ demands with items such as jean, air bag, car seat, embroidery and etc. SunStar’s sewing machines and embroidery machines are integrated with high-tech services that already exceeded local standards, and are competing with world leading products in their excellence and technology. SunStar will lead customer satisfaction with sewing machines and embroidery machines that will meet customers’ expectations through higher innovation and advances in technology.
