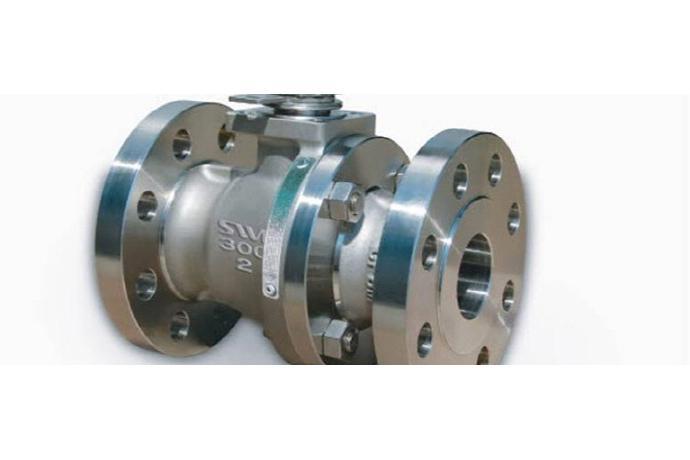

High Integrity Floating Ball Valves
Model Name
-
Data
High Integrity Floating Ball Valves
Manufacturer information
provider logo
SWI

Valve manufacturer, Ball valve, Bellows seal valve

Problem with product info?
Update request
Manufacturer
SWI
Brand
-
SKU
35058
Product Name
High Integrity Floating Ball Valves
Model Name
-
Size
-
Weight
-
Product Details

Key Features

Design, manufacture and materials conform to the essential requirements of ISO 17292, ISO 14313, API 608, API 6D, ASME B16.34, ASME VIII and Directives PED 97/23/EC and ATEX 94/9/EC.

Positive engagement and alignment of 2 piece bolted body providing ‘Gap Free’ connection.

Fully contained body gasket, graphite seal is protected from the working fluid by primary elastomeric seal for soft seated.

Superior High Integrity live loaded stem sealing system, double seal before & after fire condition. Standard valve sealing system in compliance with ISO 15848 Class AH, suitable for high vacuum service and technically emission free.

Cavity pressure relief to high pressure side in the event of thermal expansion of trapped fluid.

Positive direct pressure relief to upstream side available via vented ball for high volatility duty.

Modular design, easily adapted for low temperature & cryogenic service or fugitive emission leak detection.

Valve manufacturer, Ball valve, Bellows seal valve
SWI Valve Co Ltd (SWI) is a leading manufacturer of industrial valves with over 28 years of experience in manufacturing and international selling. A widely approved brand with global majors, SWI has established a substantial presence in the oil and gas industry especially through the supply of our products in high-profile, off-shore upstream projects. SWI’s unrelenting commitment to quality, reliability and customer satisfaction is a significant part of our company philosophy. In line with this commitment, SWI sources all of the major materials and parts only from within South Korea. Also, we do not outsource any manufacturing; all of our products are manufactured at one of our three state-of-the-art plants under our own brand name “SWI” – the very name that can be trusted to provide “Reliable Performance in Extreme Conditions."
