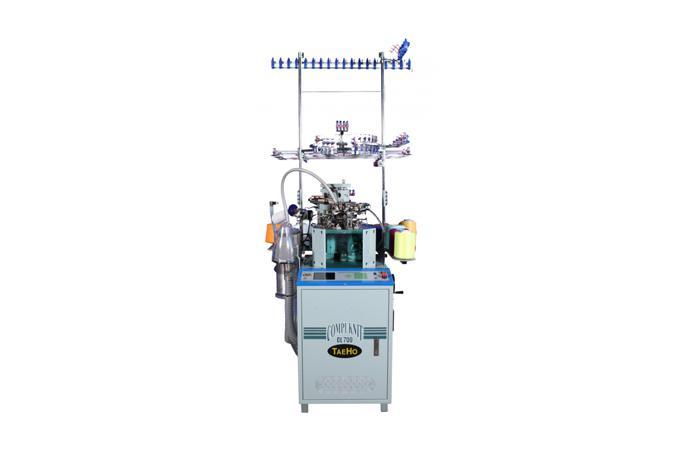

DL-700_en | TAEHO MACHINERY

Specification

– Cylinder Diameter : 3.5”,  3.75”, 4″ , 4.5″
– Net Weight : 390kg
– Needle : 54N~200N
– RPM(Max) : 400 RPM
– Air compressor output : 0.6kw
– Servo motor : 0.9kw
– For machine : 220~440V / 3Phase / 60Hz, 50Hz
– Ring blower : 0.75kw
– Control box : 0.7kw
– Floorspace : L1600 * W1500 * H2500mm
– Packing size : L1070 * W1120 * H1820mm

Technical certification

Applied a patent – No.20060077967
Acquired the approval of CE

Major Features

ㆍUPS (Uninterruptible Power Supply) function.
– In the event that power is turned off, the controller supplies power till a motor stops.
– When power is available again, the works before power cut can be recovered during a month due to the function of work storage.

ㆍIt is possible to designate knitting of maximum 4 different kinds using a controller.

ㆍThe self-diagnosis function of memory and CPU

ㆍIt is available to set up the position and frequency of oil supply by the oiler.

ㆍEasy programming to know the motion of the cams with WINDOWS connection program.

ㆍIt is possible to perform the pattern work of 16 colors including the ground color at the same process using 6 actuators equipped with 16 steps.

ㆍElectronic air system of lines, patters and 14 color yarn fingers.

ㆍTwo patterns can be knitted in turn

Characteristics

ㆍRubber stepping motors maintain the constant tension, as stepping motors are used.

ㆍSupplying electric power by servo motors, cylinder rotation as well as the vibration and noise of machines are removed and the abrasion of gear is prevented.

ㆍStepping motors precisely maintain the vertical motion of cylinders.

ㆍMounting the transformer available 220V ~ 440V

ㆍAdjusting the up and down movement of “Dial Bed Cover” with a button
