Product Name
High Viscosity PR Pump
Model Name
TP-60BR
Size
-
Weight
-
Product Details

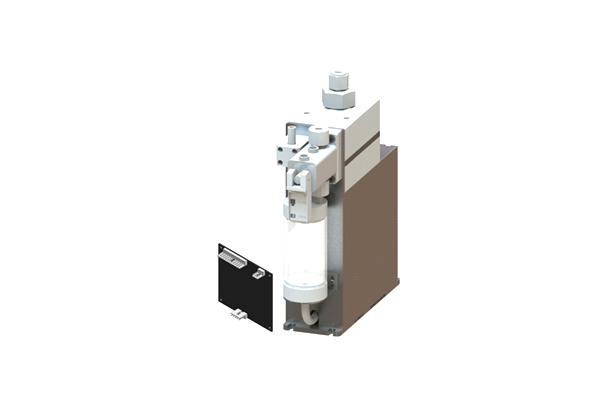

High Viscosity PR Pump
Modle TP-60BR
- DC Servo motor pump for constant dispensed
- Driving Method
Edgeless Outer Type Bellows, No ripple & No Shaking
- Save Maintenance Time
· Easy Purge Function (bottle → Buffer → Nozzle)
· Optimized Buffer Tank
- Bubble Reduction Function
- Signal is the same as RRC Pump (ACT/MARK)
- Special Welding
- No Leak Point

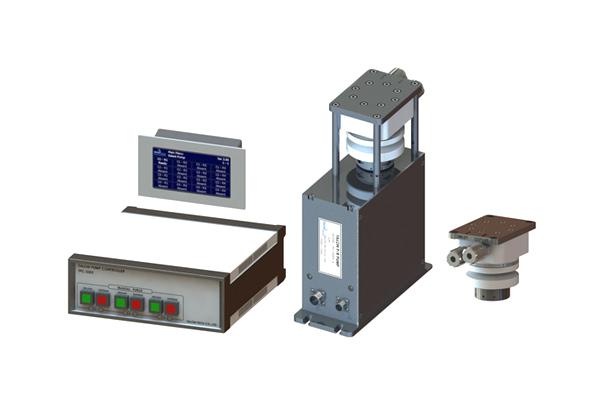

Configuration
Specifications
| Process | Description |
| Dispense Volume Range | 1.0cc~10.0cc |
| Dispense/Reload Rate | 0.3cc/sec~1.2cc/sec |
| Dispense Volume Resolution | 0.05cc |
| Dispense Repeatability | ≤±0.05(0.8cp, 23℃) |
| Viscosity | 50cp ~ 10,000cp |
| Electrical Specification | Description |
| Drive System | Dc Servo Motor, Drive Current : 300~500mA/cycle |
| Power System | Motor Driver : DC24V, Home Sensor : DC5V |
| Hardware | Description | |
| Input Pulse vs Dispense Volume | 800 pulse(full step) /1cc | |
| Resist In/Out/Vent | 3/8 Inch Teflon | |
| Input Pulse vs Encoder Output Pulse | Full step-1:1 | |
| Weight | 5.0kg | |
| Dimension | 72(W) x 299(L) x 296(H)mm | |
Remarks
1. The distance between the pump & the PR bottle must be less than 1.5meter
2. The filter installation may be possible under 200cP
3. In case of over 1.5meter & 200cP, Strongly recommended to discuss talon Tech Co.,Ltd
