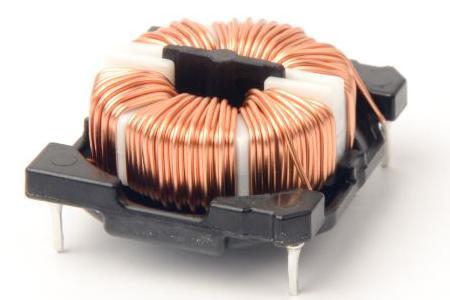

product Image

TOP

Common Mode Coil
Model Name
SLIM 22Φ Series
Series
Line Filter
Data
-
Manufacturer information
provider logo
TNCElectromagnetic wave shield parts manufacturer, Line filter, EMI filter, Blocking filter
Problem with product info?
Update request
Manufacturer
TNC
Brand
-
SKU
136984
Product Name
Common Mode Coil
Model Name
SLIM 22Φ Series, CS2G, CS2T
Size
-
Weight
-
Product Details

SLIM 22Φ SERIES

SLIM 22Φ Line Filter series are compact in size and large Inductance and have excellent electromagnetic noise suppression properties.



Part Number and Specifications

Part No.

Rated current(A)

Inductance(mH)

DC R(mΩ)

Rated Voltage(V)

C□225180S□□

2.5

18.0

179

300

C□230130S□□

3.0

13.0

126

300

C□235100S□□

3.5

10.0

105

300





 For safety and the proper usage, you are requested to approve our product specification

This contents subject to change without advance notice. Please check with our sales or R&D before ordering.
