Induction Capless Sealer_Manual
Model Name
OSTS 1000A
Series
Induction Capless Sealer
Data
-
Manufacturer information
provider logo
TRUE SEAL

Induction cap sealing machine manufacturer, High frequency sealing, Foil sealer and more

Problem with product info?
Update request
Manufacturer
TRUE SEAL
Brand
-
SKU
129308
Product Name
Induction Capless Sealer_Manual
Model Name
OSTS 1000A
Size
-
Weight
-
Product Details

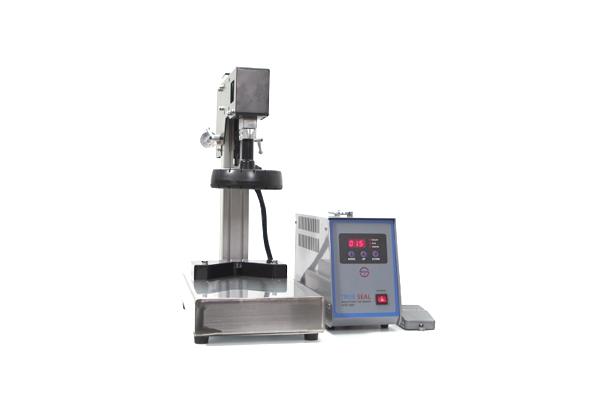

OSTS 1000A_Manual

Model OSTS 1000A is a model for small and medium-sized manufacturers that produce a small variety of products. Plastic bottle with cap, Ceramic without cap, and metal container can be sealed in production speed of 5-10 bpm The model can be used for both container with caps and without cap trough switching


Applied

Cosmetics / Food / Beverage / Bio Medical / Pharmaceutical / Engine oil / Agrochemical / Glass bottle / Metal container




Character

Foot Pedal Operation

Cap & Capless Sealing ( Switch Settings )

Easy output adjustment and time setting

Sealinghead Easy Replacement and Compatibility

(Small Head 20-55mm / Large Head 55-120mm)

Use of small and medium-sized factories and laboratories




Configuration Generator

Configuration Generator

Generator, Stand with air sylinder, Sealing head

Input

220v+/-10%, 1Ph, 50/60Hz ,5Amps

Output

1KW

Frequency

40-70KHz

Size Generator

W.140mm X D.350mm X H.210mm Stand W.240mm X D.340mm X H.410mm

Weight

20KG (includes main body)









TRUE SEAL
Induction cap sealing machine manufacturer, High frequency sealing, Foil sealer and more
Our company specializes in manufacturing, for packaging, induction sealing devices using high frequency induction heat. Induction facilities, which had been dependent on imports, were developed for the first time in Korea 25 years ago, and the induction sealer to meet with various production environments is supplied to the product lines of major companies in Korea Based on experience and know-how accumulated in all processes of product Request-Development-Test-Production, we provide  ONE-STOP optimized induction tech.,machine and sealing film in assembled. Through continuous development, 600BPM sealer of high speed production line was installed.Our product is supplied and exported, by OEMs & ODM, to packaging mfr. in domestic and overerseas.We will try to think and act from the user's point of view with the goal of technology develop.,and trust. Trueseal family will always do its best. Please give us a lot of support.
