Product Introduction

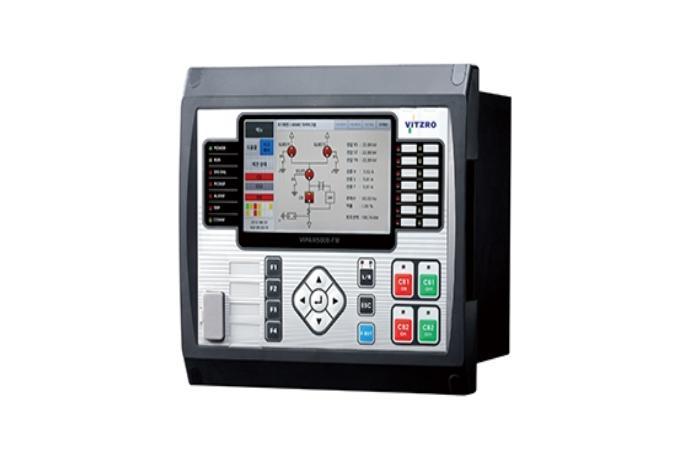

VIPAM5000-FM/DG IED (Integrated Electronic Device) is a digital protection relay that enables a high-precision measurement and protection relay for switchgear power equipments. The switchgear panel became compact by connecting various protection functions with DSP algorithm and high-speed logic function to enable a flexible engineering. It is the IED with variety of interfaces with the upper system resulting in an electronic distribution panel solution. 7″TFT-LCD(HD) is used to check diverse information, the machinery operation and setting are simplified, providing Korean or English and operators can easily use the device with an intuitive operation method. Especially, the existing communication method (MODBUS, DNP3.) and an international standard, IEC61850, essential for the smart grid configuration are adopted so that it can be applied to all facility equipments and for improvement and repair. The network is redundant and high-speed data transmission between IEDs is realized for the reliability of communication. A management program is used on PC for IED value setting, logic design, value monitoring, output control and so forth. RS232 port in front of VIPAM5000-FM/DG uses PC HMI software to support additional services including the device setting, measurement, power monitoring and saving /modifying/recovering values [relay factors]. Also, Fault Wave Data to analyze relay-relevant information can be checked.

Product Features

1) 7”Color TFT LCD Touch Screen for easy operation and use

2) MIMIC Diagram using a color graphic LCD

3) Korean/English menu selection

4) Setting Group setting

5) Logic Function

6) Voice alarm function, main alarm can be output with voice.

7) SMS sending functional: designation maximum of 10 receiving call numbers.
