Ultrasonic Flowmeter
Model Name
WTU2000
Data
-
Manufacturer information
provider logo
WinTECFlow meter manufacturer, Electronic flow meter, Ultrasonic flow meter, Ultrasonic level meter and more
Problem with product info?
Update request
Manufacturer
WinTEC
Brand
-
SKU
55355
Product Name
Ultrasonic Flowmeter
Model Name
WTU2000
Size
-
Weight
-
Product Details

Product Overview

· 초음파는 유체에 따라 특정한 전달 속도를 가지고 유체를 통과한다. 유체가 흐르고 있을때 음파가 이동한 속도는 유체의 이동속도와 음파의 이동 속도의 합과 같다.

· 즉 초음파가 유체와 동일한 방향(하류쪽)으로 전파되면서 빠르게 도달하고 반대방향(상류쪽)으로 전파되면 보다 늦게 도달하여 시간차이가 발생한다.

· WTU2000은 초음파를 이용한 유량계로 상류쪽과 하류쪽에 설치한 트랜듀서 사이에서 초음파 전파시간를 계산하여 ,두개의 초음파 전달 시간을 기초로 하여 유체의 유량 및 유속을 계산한다.

Product Feature
· 정밀도 ±0.5%

· 직선성 `%, 재현성 0.3%

· 양방향 유량 측정가능

· 열량계 기능 내장(아날로그 입력 사용)

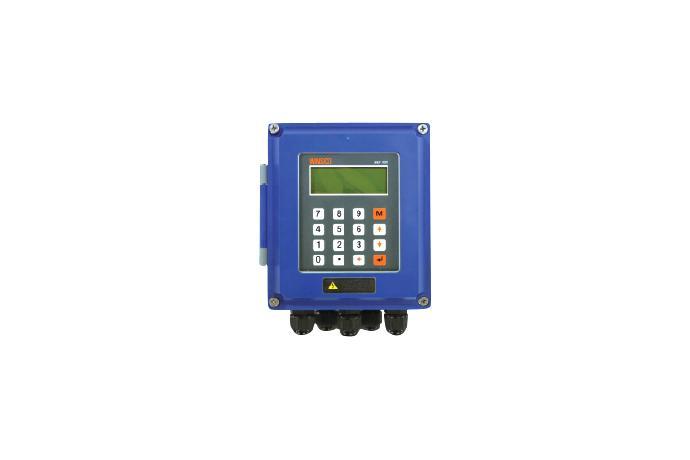

· 쉬은 엑세스를 위한 전화기 버튼 형태의 키 배열

· 미터법 또는 영미법 측정 단위 선택 가능

· 낮은 전력 소모량

· 현대적인 디자인의 외형과 결선 부위의 보호 커버

· 완벽한 통신을 위한 프로토콜(RS-232C/RS485)

· 40 pico-second의 빠른 시간 측정 분해능

(주)윈텍 초음파유량계 WTU2000



(주)윈텍 초음파유량계 WTU2000 1



(주)윈텍 초음파유량계 WTU2000 2



(주)윈텍 초음파유량계 WTU2000 3
