WISE CONTROL

Home Manufacturers WISE CONTROL

1/1

WISE CONTROL

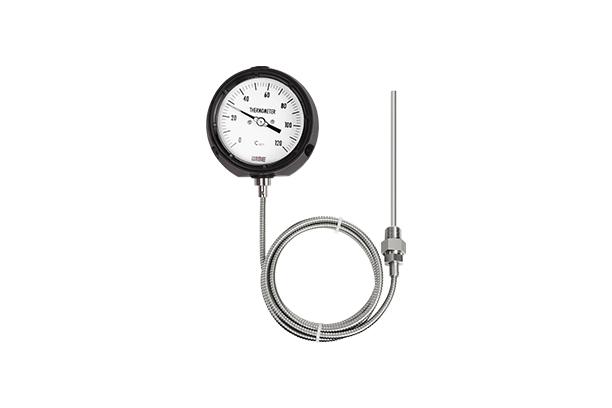

Safety pattern type remote reading thermometer solid-front turret style thermoplastic case

Model

Series

Temperature Gauge•Switch•Recorder

Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

Contact the manufacturer/supplier.

Description

Service intended

This thermometer is used for measuring temperature of corrosive and non-corrosive fluid in all industries. It operates in aggressive and non-aggressive environment. Linear dials and temperature compensate line assure an accurate temperature indication at varying ambient conditions.

Nominal diameter	125 mm
Accuracy	±2.0% of full scale
Measuring system (SAMA class ⅢB)	Organic gas : 0 ~ 200 °C Inert gas : -200 ~ 700 °C
Working range	Maximum scale value

Standard features

Location of stem and mounting	Bottom connection, surface, case mounting lugs Lower back connection, surface, case mounting lugs
Case and cover	Black glass reinforced thermoplastic (PBTB) Solid front, blow-out back Turret style case with built in rear flange lugs
Capillary	Capillary : 1.6/0.2 mm, 316SS Armored tube : 7.5/5.5 mm, 304SS
Window	Polycarbonate
Dial	White aluminium with black graduations
Pointer	Black painted aluminium alloy
Stem	8.0, 10.0 and 12.0 mm 316SS and 316L SS
Stem, process connection	⅜", ½", ¾" PT, NPT and PF
Option	Special accuracy, ±1.0 % of full scale

Download

Catalog-WISE-Temperature Gauge•Switch•Recorder-Safety pattern type remote reading thermometer solid-front turret style thermoplastic case

Manual-WISE-Temperature Gauge•Switch•Recorder-Safety pattern type remote reading thermometer solid-front turret style thermoplastic case
